Standard 7/16 DIN 25 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

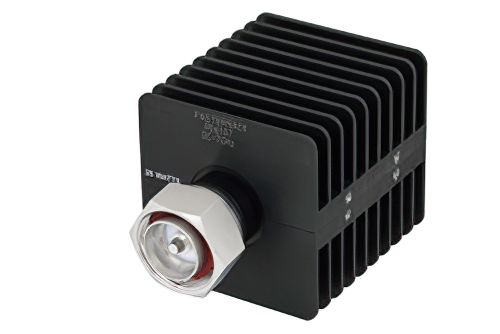

25 Watt RF Load Up to 7 GHz With 7/16 DIN Male Input Square Body Black Anodized Aluminum Heatsink

Product ID: PE6107
25 Watt RF Load Up to 7 GHz With 7/16 DIN Male Input Square Body Black Anodized Aluminum Heatsink


Image Views:  25 Watt RF Load Up to 7 GHz With 7/16 DIN Male Input Square Body Black Anodized Aluminum Heatsink high resolution
Zoomalternate image
View 2


Click for:PE6107 Datasheet
Click for:PE6107 RoHS Cert
Click for:PE6107 REACH Cert
Available Quantity: 37
Pricing Table
QUANTITYPRICE
1-24$428.10
25-49$398.13
50-99$368.17
100-249$342.48
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector Series7/16 DIN
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency7 GHz
Impedance50 Ohm
Maximum VSWR1.25:1
Maximum Power25 Watt


Medium Power 25 Watts RF Load Up To 7 GHz With 7/16 DIN Male Input Square Body Black Anodized Aluminum Heatsink

PE6107 25 Watts RF load (also known as termination or dummy load) has a 7/16 DIN connector that is male. This Pasternack 25 watts 7/16 DIN male load / termination is rated for a maximum frequency of 7 GHz. Our 7/16 DIN male termination load is a rf load termination with a 50 Ohm impedance.

This 7/16 DIN load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm 7/16 DIN coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. PE6107 25 watts 7/16 DIN male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 7/16 DIN male 25 watts termination load will ship worldwide the same day as purchased.
