3/4"-20 Twinax Tee Adapters

Check out our new RF calculators & conversion tools...

95 Ohm 3/4 inch-20 Twinax Tee Adapter Female-Male-Female

Product ID: PE9374

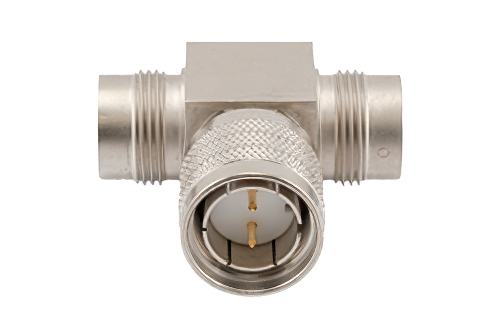

95 Ohm 3/4 inch-20 Twinax Tee Adapter Female-Male-Female

Image Views:  95 Ohm 3/4 inch-20 Twinax Tee Adapter Female-Male-Female high resolution
Zoom


Click for:PE9374 Datasheet
Click for:PE9374 RoHS Cert
Click for:PE9374 REACH Cert
Available Quantity: 31
Pricing Table
QUANTITYPRICE
1-24$38.72
25-49$36.01
50-99$33.30
100-249$30.98
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 13/4"-20 Twinax
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 195 Ohm
Connector Series 23/4"-20 Twinax
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 295 Ohm
Connector Series 33/4"-20 Twinax
Connector Gender 3Female
Connector Polarity 3Standard
Connector Impedance 395 Ohm
Adapter Body StyleTee
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel
Connector Mount Method 3None
Connector Body Material 3Brass
Connector Body Plating 3Nickel


95 Ohm 3/4 inch-20 Twinax Tee Adapter Female-Male-Female

3/4"-20 Twinax adapter PE9374 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our 3/4"-20 Twinax to 3/4"-20 Twinax adapter is a in-series coaxial adapter design. This 95 Ohm 3/4"-20 Twinax adapter is precision manufactured to RF components industry specifications.

3/4"-20 Twinax female to 3/4"-20 Twinax male adapter is one of the many RF components that ship same day as they are ordered. PE9374 female 3/4"-20 Twinax to male 3/4"-20 Twinax adapter has a tee body. This Pasternack tee 3/4"-20 Twinax adapter is also known as a 3/4"-20 Twinax T connector.

Our female 3/4"-20 Twinax to male 3/4"-20 Twinax adapter PE9374 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This 3/4"-20 Twinax to 3/4"-20 Twinax radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
