3 Section Tunable Band Reject Filter with N Female Connectors Operating from 200 MHz to 400 MHz with a 1% Bandwidth

Product ID: PE8735
3 Section Tunable Band Reject Filter with N Female Connectors Operating from 200 MHz to 400 MHz with a 1% Bandwidth

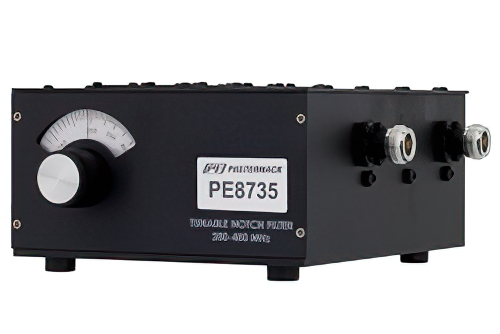

Image Views:  3 Section Tunable Band Reject Filter with N Female Connectors Operating from 200 MHz to 400 MHz with a 1% Bandwidth high resolution
Zoomalternate image
View 2


Click for:PE8735 Datasheet
Click for:PE8735 RoHS Cert
Available Quantity: Call for Availability
Pricing Table
QUANTITYPRICE
1-1$2,151.76
2-4$2,076.45
5-9$2,001.14
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
TypeBand Reject
DesignTunable
Min Frequency200 MHz
Max Frequency400 MHz
Impedance50 Ohm
Input Max VSWR1.5:1
Maximum Power50 Watts
Connector-In SeriesN
Connector-In GenderFemale
Connector-Out SeriesN
Connector-Out GenderFemale


3 Section Tunable Band Reject Filter With N Female Connectors Operating From 200 MHz to 400 MHz With a 1% Bandwidth

Tunable band reject filter (also known as band stop or notch filter) PE8735 from Pasternack is part of our extensive in-stock RF components for sale. Our tunable band reject filter is manufactured with N connectors that are female and in a 3 section design. This 3 section N tunable band-reject filter has an VSWR of 1.5 and a maximum power of 50 Watts.

Frequency range of this adjustable band stop filter is 200 MHz to 400 MHz and the percentage of bandwidth is 1%. PE8735 adjustable band reject notch filter is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 3 section variable notch filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
