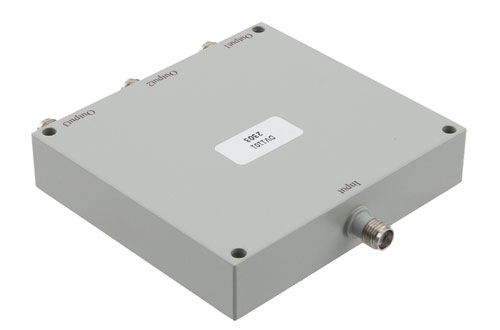

3 Way SMA Power Divider From 0.8 GHz to 2.5 GHz Rated at 30 Watts
Product ID:
PE20DV1101
Pricing
| Quantity | Price |
| 1-9 | $293.99 |
| 10-24 | $288.11 |
| 25-99 | $282.23 |
| 100-249 | $276.35 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 7
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Connector Series In |
SMA |
| Connector Gender In |
Female |
| Minimum Frequency |
800 MHz |
| Maximum Frequency |
2.5 GHz |
| Number of Output Ports |
3 Port |
| Impedance |
50 Ohm |
| Maximum Input Power |
30 Watt |
Description
3 Way SMA Power Divider From 0.8 GHz to 2.5 GHz Rated at 30 Watts
Pasternack carries a wide selection of power dividers to fit your needs. These components are essential in many systems, allowing the combination of multiple signals or splitting of a single signal into multiple signals with equal magnitude and phase. Pasternack’s resistive and Wilkinson power dividers come with excellent performance featuring minimal loss, high isolation and low VSWR. They are available in both narrow and broad bandwidths with a variety of connector types such as 2.92mm, 2.4mm, 1.85mm BNC, N and SMA.
The PE20DV1101 is a 3-way power divider that operates from 0.8 to 2.5 GHz and can handle up to 30 Watts (CW) with 0.7 dB max insertion loss and 20 dB min isolation. The package interface uses SMA female connectors.
