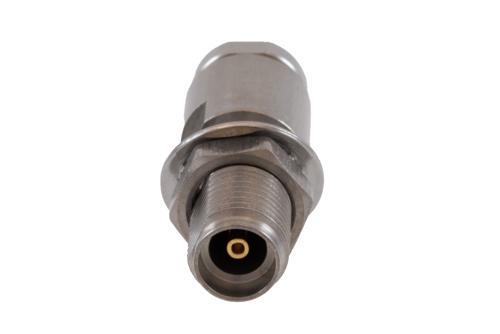

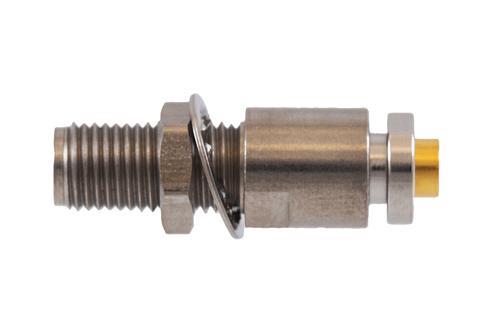

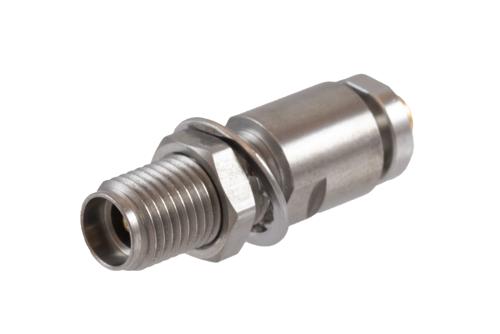

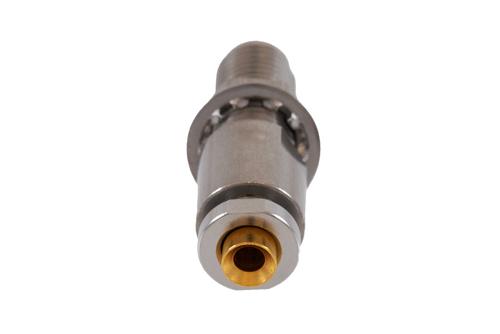

PE517796 3.5mm female bulkheadcoaxialconnector has an interface type of 3.5mm female which is compatible with PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405 and RG405 tinned cables and has an impedance of 50 Ohms. Pasternack’s 3.5mm female bulkhead connector uses clamp/solder as an attachment method. Our female 3.5mm coaxial connector provides a maximum frequency of 34.5 GHz. This 3.5mm female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack 3.5mm female bulkheadcoaxialconnector has a PPO dielectric type and a VSWR of 1.25:1. Pasternack’s 3.5mm coaxial connector has a stainless steel body with passivated plating. Our PE517796 3.5mm connector uses a gold over nickel over copper-plated beryllium copper contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from stainless steel material has a contact life of 500 cycles or more. The PE517796 3.5mm bulkhead connector operates at a temperature range of -55 to 105 deg C. This threaded female 3.5mm coaxial RF connector has a maximum insertion loss of 0.176 dB. This 3.5mm connector has a gold over nickel over copper inner contact plating. The Pasternack 3.5mm female connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our 3.5mm female connector has a length of 1.012 inches, a width of 0.321 inches, and a weight of 0.02 lbs. This threaded 3.5mm female coaxial connector features a passivated plated stainless steel coupling nut. This radio frequency coaxial connector comes with a passivated plated stainless steel washer.
This Pasternack female 3.5mm bulkhead connector will ship the same business day as purchased. Our bulkhead 3.5mm female connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
