3.5mm Female to 3.5mm Male Cable Assemblies

Check out our new RF calculators & conversion tools...

Handheld RF Analyzer Rugged Phase Stable Cable 3.5mm Male to 3.5mm Female Cable Using PE-FF430 Coax, RoHS

Product ID: PE3C4012

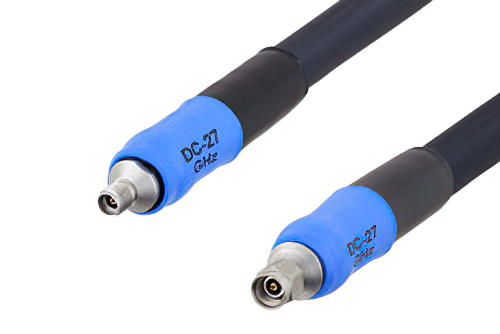

Handheld RF Analyzer Rugged Phase Stable Cable 3.5mm Male to 3.5mm Female Cable Using PE-FF430 Coax, RoHS


Image Views:  Handheld RF Analyzer Rugged Phase Stable Cable 3.5mm Male to 3.5mm Female Cable Using PE-FF430 Coax, RoHS high resolution
Zoomalternate image

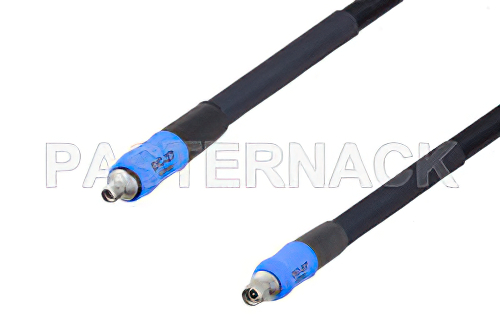

View 2


Click for:PE3C4012 Datasheet
Click for:PE3C4012 RoHS Cert
Click for:PE3C4012 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
100 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 13.5mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 23.5mm
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-FF430
RF Cable TypePE-FF430
RF Cable Impedance50


Handheld RF Analyzer Rugged Phase Stable Cable 3.5mm Male to 3.5mm Female Cable Using PE-FF430 Coax, RoHS

PE3C4012 is a 3.5mm male to 3.5mm female cable using PE-FF430 coax. This Pasternack 3.5mm male to 3.5mm female cable assembly uses a 50 Ohm 3.5mm for connector 1 and a 50 Ohm 3.5mm for connector 2.

Our male 3.5mm to female 3.5mm cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4012 3.5mm male to 3.5mm female cable assembly is constructed with PE-FF430 coax and the maximum VSWR is 1.3:1.
