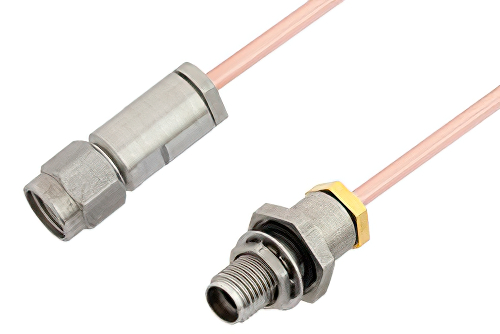

3.5mm Male to 3.5mm Female Bulkhead Cable Using RG405 Coax, RoHS

Product ID: PE34590LF
3.5mm Male to 3.5mm Female Bulkhead Cable Using RG405 Coax, RoHS

Image Views:  3.5mm Male to 3.5mm Female Bulkhead Cable Using RG405 Coax, RoHS high resolution
Zoom


Click for:PE34590LF Datasheet
Click for:PE34590LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
6 in.12 in.18 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 13.5mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 23.5mm
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG405/U
RF Cable TypeRG405
RF Cable Impedance50


3.5mm Male to 3.5mm Female Bulkhead Cable Using RG405 Coax, RoHS

PE34590LF is a 3.5mm male to 3.5mm female bulkhead cable using RG405 coax. This Pasternack 3.5mm male to 3.5mm female bulkhead cable assembly uses a 50 Ohm 3.5mm for connector 1 and a 50 Ohm 3.5mm for connector 2.

Our male 3.5mm to female 3.5mm bulkhead cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE34590LF 3.5mm male to 3.5mm female bulkhead cable assembly is constructed with RG405 coax.
