3.5mm Male to 3.5mm Male Test Cable Using VNA Test Cable Coax, LF Solder, RoHS

Product ID: PE315

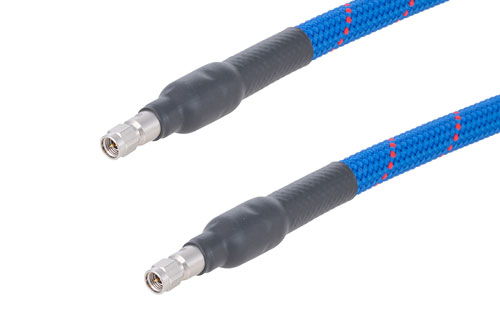

3.5mm Male to 3.5mm Male Test Cable Using VNA Test Cable Coax, LF Solder, RoHS

Image Views:  3.5mm Male to 3.5mm Male Test Cable Using VNA Test Cable Coax, LF Solder, RoHS high resolution
Zoom


Click for:PE315 Datasheet
Click for:PE315 RoHS Cert
Click for:PE315 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.36 in.48 in.60 in.72 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 13.5mm
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 23.5mm
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-VNA
RF Cable TypeVNA Cable
RF Cable Impedance50


3.5mm Male to 3.5mm Male VNA Test Cable, ROHS

PE315 is a 3.5mm male to 3.5mm male cable using VNA Cable coax. This Pasternack 3.5mm male to 3.5mm male cable assembly uses a 50 Ohm 3.5mm for connector 1 and a 50 Ohm 3.5mm for connector 2.

Our male 3.5mm to male 3.5mm cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE315 3.5mm male to 3.5mm male cable assembly is constructed with VNA Cable coax and the maximum VSWR is 1.29:1.
