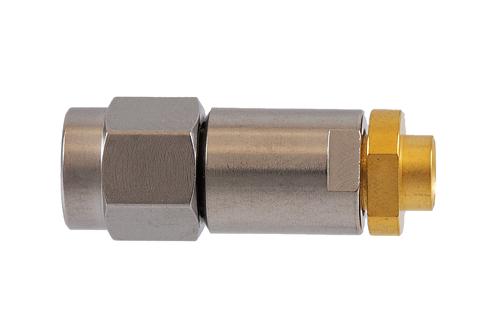

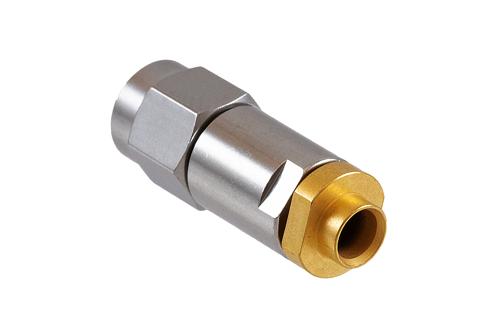

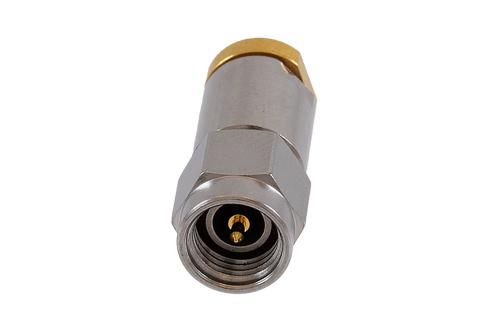

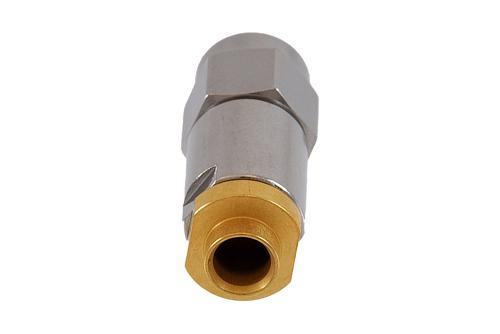

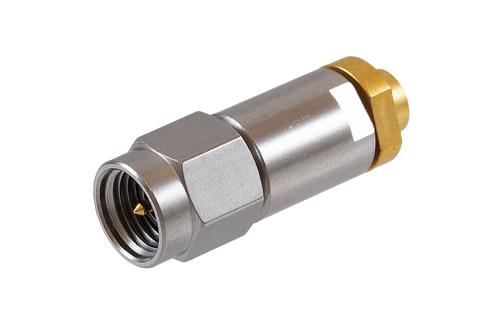

PE517798 3.5mm male coaxial connector has an interface type of 3.5mm male, which is compatible with PE-141FL-NM, PE-SR141-NM, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, RG402 and RG402 tinned cables, and has an impedance of 50 Ohms. Pasternack’s 3.5mm male connector uses clamp/solder as an attachment method. Our male 3.5mm coaxial connector provides a maximum frequency of 26.5 GHz. This 3.5mm male RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack 3.5mm male coaxial connector has a PPO dielectric type and a VSWR of 1.25:1. Pasternack’s 3.5mm coaxial connector has a stainless steel body with passivated plating. Our PE517798 3.5mm connector uses a beryllium copper inner contact and a stainless steel outer contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from stainless steel material has a contact life of 500 cycles or more. The PE517798 3.5mm connector operates at a temperature range of -55 to 105 deg C. Our threaded male 3.5mm coaxial RF connector has a maximum insertion loss of 0.154 dB. This 3.5mm connector has a copper-tin-zinc alloy inner contact plating and a passivated outer contact plating. The Pasternack 3.5mm male connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our 3.5mm male connector has a length of 0.917 inches, a width of 0.313 inches, and a weight of 0.02 lbs.
This Pasternack male 3.5mm connector will ship the same business day as purchased. Our 3.5mm male coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
