Standard N 300 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

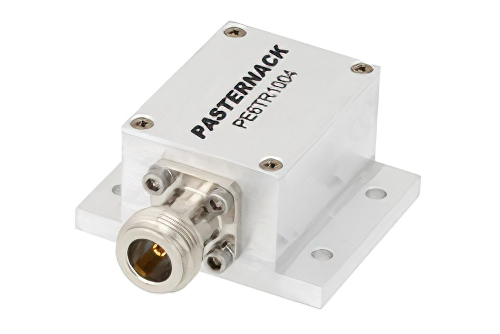

High Power 300 Watt RF Load Up to 3 GHz with N Female Chem Film Plated Aluminum

Product ID: PE6TR1004
High Power 300 Watt RF Load Up to 3 GHz with N Female Chem Film Plated Aluminum


Image Views:  High Power 300 Watt RF Load Up to 3 GHz with N Female Chem Film Plated Aluminum high resolution
Zoomalternate image

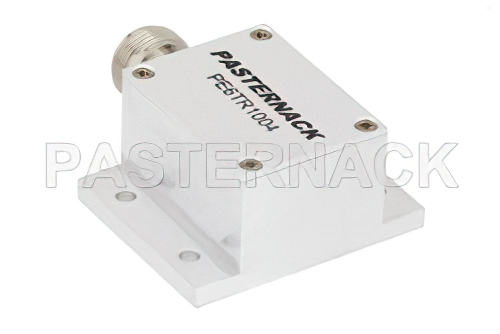

View 2


Click for:PE6TR1004 Datasheet
Click for:PE6TR1004 RoHS Cert
Available Quantity: Call for Availability
Pricing Table
QUANTITYPRICE
1-1$525.67
2-4$504.64
5-9$483.62
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesN
Connector GenderFemale
Minimum FrequencyDC
Maximum Frequency3 GHz
Impedance50 Ohm
Maximum VSWR1.3:1
Maximum Power300 Watt


High Power 300 Watt RF Load Up To 3 GHz With N Female Input

PE6TR1004 300 Watts RF load (also known as termination or dummy load) has a N connector that is female. This Pasternack 300 watts N female load / termination is rated for a maximum frequency of 3 GHz. Our N female termination load is a rf load termination with a 50 Ohm impedance.

This precision N load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm N coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.3:1. PE6TR1004 300 watts N female precision load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our N female 300 watts termination load will ship worldwide the same day as purchased.
