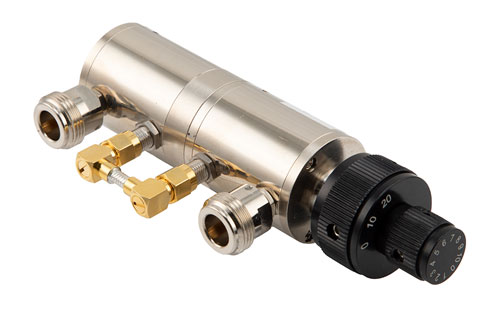

1 to 30 dB Step Attenuator With a 1 dB Step N Female Connectors Rated Up To 3 GHz and Up to 2 Watts in a Dial Design

Product ID: PE70A1036

Pricing

Quantity	Price
1-4	$1,207.50
5-9	$1,159.20
10-24	$1,110.90
25-99	$1,062.60
100+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 1

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Design	Step
Maximum Frequency	3 GHz
Impedance	50 Ohm
Power Maximum	2 Watt
VSWR Maximum	1.5:1
Connector Series 1	N
Connector Gender 1	Female
Connector Series 2	N
Connector Gender 2	Female
Minimum Attenuation	1 dB

Description

1 to 30 dB Step Attenuator With a 1 dB Step N Female Connectors Rated Up To 3 GHz and Up to 2 Watts in a Dial Design

PE70A1036 is a stepped attenuator from Pasternack. Our type N attenuator is a RF step attenuator design. This 50 Ohm manual step attenuator is precision manufactured to RF and microwave industry specifications.

The Pasternack coaxial step attenuator has a female gender for connector 1 and a type N female for connector 2. PE70A1036 stepped attenuator has a minimum attenuation of 1 dB and a maximum attenuation of 30 dB with 1dB step sizes. Our RF step attenuator has frequency range of DC to 3 GHz and a maximum VSWR of 1.5. This adjustable type N attenuator is rated to 2 Watts at the stated attenuation.

Our stepped attenuator PE70A1036 is shipped from our facility certified to ISO 9001:2015 the same day as purchased. This type N attenuator is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
