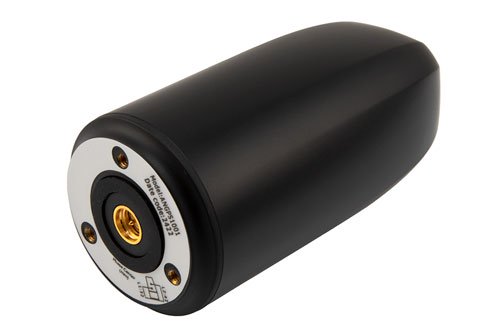

Multi Band 37dBi GPS/GNSS UAV Antenna 1,166-1,610 MHz SMA Male Connector IP67

Name: Multi Band 37dBi GPS/GNSS UAV Antenna 1,166-1,610 MHz SMA Male Connector IP67
Brand: Pasternack
SKU: PEANGPS1001
Availability: LimitedAvailability

Product ID: PEANGPS1001

Pricing

Quantity	Price
1-4	$870.00
5-9	$835.20
10-24	$800.40
25-99	$765.60
100+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 54

Same-Day Shipping!

Order in the next hours!

Product discontinued when current inventory is depleted.

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications.
Antenna Type	GPS/GNSS
Polarization	RHCP
Minimum Frequency	1.166 GHz
Maximum Frequency	1.61 GHz
Connector Series	SMA
Connector Gender	Male
Impedance	50 Ohm

Description

Multi Band 37dBi GPS/GNSS UAV Antenna 1,166-1,610 MHz SMA Male Connector IP67

The PEANGPS1001 is an active GPS/GNSS multi band L1/L2/L5 antenna with 37dBi overall gain. This high precision antenna is IP67 rated, light weight and designed for Unmanned Arial Vehicles (UAV). The active UAV GPS/GNSS antenna is ideally suited for use in harsh operating environments where stability and reliability of GPS/GNSS signal is required.

This antenna operates in the 1.166-1.278GHz and 1.52-1.61GHz bands meeting GPS L1/L2/L5, GALILEO E1/E5a/E5b/E6 and GLONASS L1/L2/L3 requirements. The PEANGPS1001 antenna has an integrated LNA with 1.5 dB noise figure and typical LNA gain of 33 dB.

The PEANGPS1001 GPS antenna from Pasternack, with an axial ratio of 3 dB, can track visible satellites under extreme conditions, providing positioning solutions with accuracy for UAV navigation, autonomous tracking, or GIS surveying.
