4 Section Bandpass Filter With SMA Female Connectors Operating From 1.565 GHz to 1.585 GHz With a 20 MHz Passband

Product ID: PE8703
4 Section Bandpass Filter With SMA Female Connectors Operating From 1.565 GHz to 1.585 GHz With a 20 MHz Passband

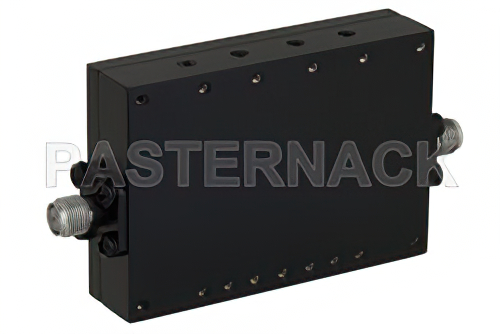

Image Views:  4 Section Bandpass Filter With SMA Female Connectors Operating From 1.565 GHz to 1.585 GHz With a 20 MHz Passband high resolution
Zoomalternate image

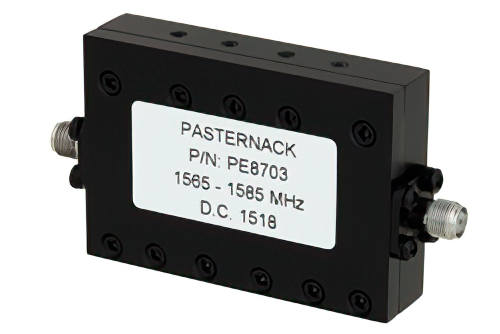

View 2


Click for:PE8703 Datasheet
Click for:PE8703 RoHS Cert
Click for:PE8703 REACH Cert
Available Quantity: 22
Pricing Table
QUANTITYPRICE
1-9$474.42
10-24$450.70
25-49$426.98
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
BandsGPS L1
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency1.565 GHz
Bandpass Max Frequency1.585 GHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss1.5 dB
Maximum Power5 Watts


4 Section Bandpass Filter With SMA Female Connectors Operating From 1.565 GHz to 1.585 GHz With a 20 MHz Passband

GPS L1 bandpass filter PE8703 from Pasternack is part of our extensive in-stock RF components for sale. Our GPS L1 band pass filter is manufactured with SMA connectors that are female and in a 4 section design. This 4 section SMA bandpass filter for GPS L1 has an insertion loss of 1.500 dB and a maximum power of 5 Watts.

Frequency range of this band pass filter is 1.565 GHz to 1.585 GHz and the passband is 20 MHz. PE8703 bandpass filter for GPS L1 band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 4 section GPS L1 bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
