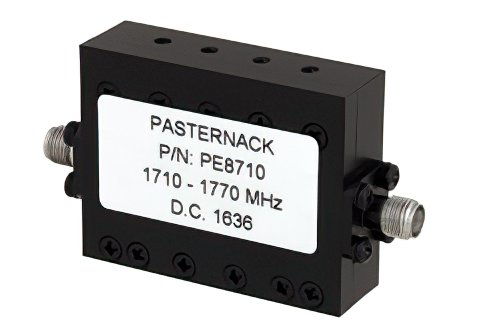

4 Section Bandpass Filter With SMA Female Connectors Operating From 1.71 GHz to 1.77 GHz With a 60 MHz Passband

Product ID: PE8710
4 Section Bandpass Filter With SMA Female Connectors Operating From 1.71 GHz to 1.77 GHz With a 60 MHz Passband

Image Views:  4 Section Bandpass Filter With SMA Female Connectors Operating From 1.71 GHz to 1.77 GHz With a 60 MHz Passband high resolution
Zoom


Click for:PE8710 Datasheet
Click for:PE8710 RoHS Cert
Click for:PE8710 REACH Cert
Available Quantity: 36
Pricing Table
QUANTITYPRICE
1-9$488.10
10-24$463.70
25-49$439.29
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
BandsUMTS/AWS
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency1.71 GHz
Bandpass Max Frequency1.77 GHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss1.5 dB
Maximum Power5 Watts


4 Section Bandpass Filter With SMA Female Connectors Operating From 1.71 GHz To 1.77 GHz With a 60 MHz Passband

UMTS/AWS bandpass filter PE8710 from Pasternack is part of our extensive in-stock RF components for sale. Our UMTS/AWS band pass filter is manufactured with SMA connectors that are female and in a 4 section design. This 4 section SMA bandpass filter for UMTS/AWS has an insertion loss of 1.500 dB and a maximum power of 5 Watts.

Frequency range of this band pass filter is 1.71 GHz to 1.77 GHz and the passband is 60 MHz. PE8710 bandpass filter for UMTS/AWS band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 4 section UMTS/AWS bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
