4 Section Bandpass Filter With SMA Female Connectors Operating From 4.9 GHz to 5.9 GHz With a 1,000 MHz Passband

Product ID: PE8714
4 Section Bandpass Filter With SMA Female Connectors Operating From 4.9 GHz to 5.9 GHz With a 1,000 MHz Passband

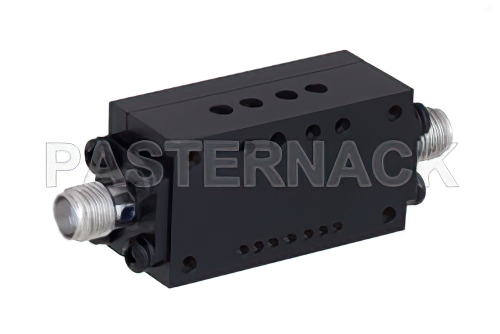

Image Views:  4 Section Bandpass Filter With SMA Female Connectors Operating From 4.9 GHz to 5.9 GHz With a 1,000 MHz Passband high resolution
Zoomalternate image

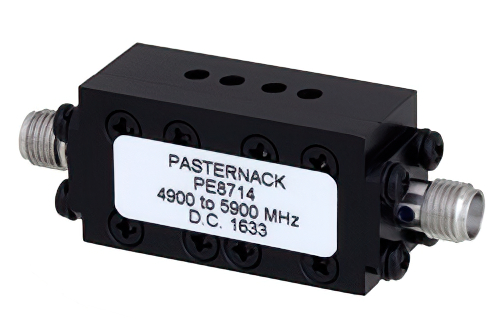

View 2


Click for:PE8714 Datasheet
Click for:PE8714 RoHS Cert
Click for:PE8714 REACH Cert
Available Quantity: 54
Pricing Table
QUANTITYPRICE
1-9$465.29
10-24$442.03
25-49$418.76
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
BandsWIMAX
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale
Bandpass Min Frequency4.9 GHz
Bandpass Max Frequency5.9 GHz
RF Filter DesignCombline
Impedance50 Ohm
Maximum Insertion Loss0.75 dB
Maximum Power5 Watts


4 Section Bandpass Filter With SMA Female Connectors Operating From 4.9 GHz to 5.9 GHz With a 1 GHz Passband

WIMAX bandpass filter PE8714 from Pasternack is part of our extensive in-stock RF components for sale. Our WIMAX band pass filter is manufactured with SMA connectors that are female and in a 4 section design. This 4 section SMA bandpass filter for WIMAX has an insertion loss of 0.750 dB and a maximum power of 5 Watts.

Frequency range of this band pass filter is 4.9 GHz to 5.9 GHz and the passband is 1,000 MHz. PE8714 bandpass filter for WIMAX band is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 4 section WIMAX bandpass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
