4 Way 2.92mm Power Divider from 6 GHz to 40 GHz Rated at 20 Watts

Product ID: PE20DV1068

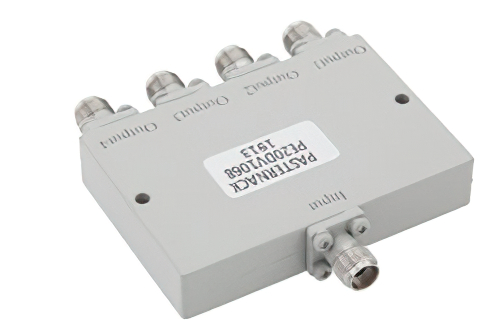

4 Way 2.92mm Power Divider from 6 GHz to 40 GHz Rated at 20 Watts


Image Views:  4 Way 2.92mm Power Divider from 6 GHz to 40 GHz Rated at 20 Watts high resolution
Zoomalternate image
View 2


Click for:PE20DV1068 Datasheet
Available Quantity: 1
Pricing Table
QUANTITYPRICE
1-24$1,349.66
25-49$1,255.18
50-99$1,160.71
100-249$1,079.73
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series In2.92mm
Connector Gender InFemale
Minimum Frequency6 GHz
Maximum Frequency40 GHz
Number of Output Ports4 Port
Impedance50 Ohm
Maximum Input Power20 Watt


4 Way 2.92mm Power Divider from 6 GHz to 40 GHz Rated at 20 Watts

PE20DV1068 4 way 2.92mm power divider (also known as a 2.92mm coaxial power splitter) is rated for a minimum frequency of 6 GHz and a maximum frequency of 40 GHz. This Pasternack 4 port 2.92mm power divider / coaxial splitter has a 50 Ohm impedance and a maxium input power of 20 Watts. Our 2.92mm coaxial RF splitter / divider has a female 2.92mm input and 4 female 2.92mm output ports.

This 4 way 2.92mm RF power divider from Pasternack is a wilkinson design and has a maximum insertion loss of 1.6. The maximum input VSWR of this 2.92mm wilkinson splitter / divider is and the minimum isolation is 15 dB. Our 4 port 2.92mm power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This wilkinson 4 way 2.92mm female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
