BNC 4 Way Power Dividers 75 Ohm

Check out our new RF calculators & conversion tools...

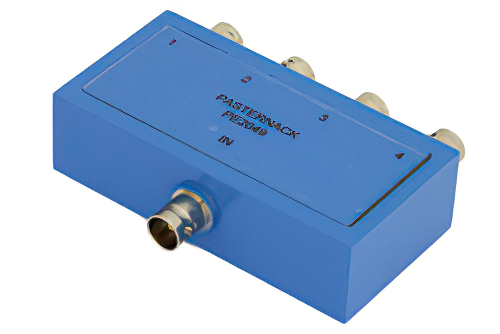

75 Ohm 4 Way BNC Power Divider From 2 MHz to 500 MHz Rated at 1 Watts

Product ID: PE2049
75 Ohm 4 Way BNC Power Divider From 2 MHz to 500 MHz Rated at 1 Watts


Image Views:  75 Ohm 4 Way BNC Power Divider From 2 MHz to 500 MHz Rated at 1 Watts high resolution
Zoomalternate image
View 2


Click for:PE2049 Datasheet
Click for:PE2049 RoHS Cert
Click for:PE2049 REACH Cert
Available Quantity: 45
Pricing Table
QUANTITYPRICE
1-24$394.94
25-49$367.29
50-99$339.65
100-249$315.95
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series InBNC
Connector Gender InFemale
Minimum Frequency2 MHz
Maximum Frequency500 MHz
Number of Output Ports4 Port
Impedance75 Ohm
Maximum Input Power1 Watt


75 Ohm 4 Way BNC Power Divider From 2 MHz to 500 MHz Rated at 1 Watts

PE2049 4 way BNC power divider (also known as a BNC coaxial power splitter) is rated for a minimum frequency of 2 MHz and a maximum frequency of 500 MHz. This Pasternack 4 port BNC power divider / coaxial splitter has a 75 Ohm impedance and a maxium input power of 1 Watts. Our BNC coaxial RF splitter / divider has a female BNC input and 4 female BNC output ports.

This 4 way BNC RF power divider from Pasternack is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this BNC reactive splitter / divider is 1.35:1 and the minimum isolation is 22 dB. Our 4 port BNC power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This reactive 4 way BNC female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
