N 4 Way Power Dividers 50 Ohm

Check out our new RF calculators & conversion tools...

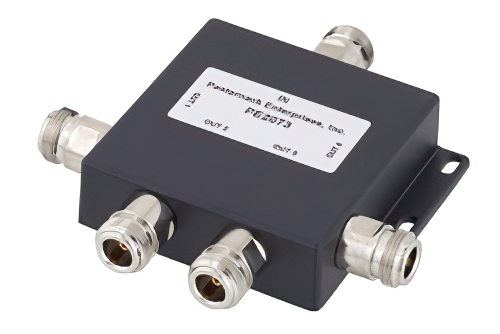

4 Way N Power Divider From 800 MHz to 2.5 GHz Rated at 50 Watts

Product ID: PE2073
4 Way N Power Divider From 800 MHz to 2.5 GHz Rated at 50 Watts


Image Views:  4 Way N Power Divider From 800 MHz to 2.5 GHz Rated at 50 Watts high resolution
Zoomalternate image
View 2


Click for:PE2073 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Power Dividers.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series InN
Connector Gender InFemale
Minimum Frequency800 MHz
Maximum Frequency2.5 GHz
Number of Output Ports4 Port
Impedance50 Ohm
Maximum Input Power50 Watt


50 Ohm 4 Way N Power Divider From 800 MHz to 2.5 GHz Rated at 50 Watts

PE2073 4 way N power divider (also known as a N coaxial power splitter) is rated for a minimum frequency of 800 MHz and a maximum frequency of 2.5 GHz. This Pasternack 4 port N power divider / coaxial splitter has a 50 Ohm impedance and a maxium input power of 50 Watts. Our N coaxial RF splitter / divider has a female N input and 4 female N output ports.

This 4 way N RF power divider from Pasternack is a reactive design and has a maximum insertion loss of 0. The maximum input VSWR of this N reactive splitter / divider is 1.3:1 and the minimum isolation is 20 dB. Our 4 port N power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This reactive 4 way N female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts.
