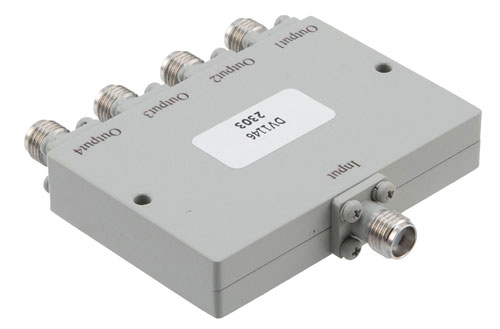

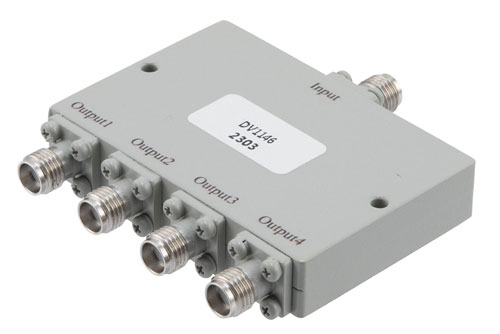

The PE20DV1146 4-way waveguide power divider (also known as a coaxial power splitter) is rated for a minimum frequency of 15 GHz and a maximum frequency of 26.5 GHz. This Pasternack 4 port power divider/coaxial splitter has a 50 Ohm impedance and a maximum input power of 20 kW. Our coaxial RF splitter/divider has a female input and 4 female output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase. Our 4-way waveguide power divider has 200 kW of peak input power.
Pasternack’s PE20DV1146 coax connectorized power splitter has an aluminum housing and can handle maximum reverse power up to 0.5 Watts. This threaded connector waveguide power divider has a 0.4 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C. This 26.5 GHz waveguide power divider has 3 degrees and 5 degrees typical and maximum phase balance, respectively. Additional power divider specifications and dimensions can be found on its PDF specification datasheet and CAD drawings above.
This 4-way RF power divider from Pasternack has a maximum insertion loss of 1.2 dB. The maximum input VSWR of this splitter/divider is 1.7:1 and the minimum isolation is 16 dB. The PE20DV1146 waveguide power divider from Pasternack is ideal for test and measurement, military communications, commercial communications, wireless communications and satcom applications.
Our 4 port waveguide power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 4-way coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect waveguide power divider for your requirements.
