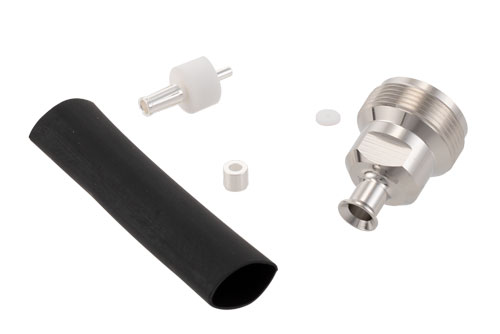

4.1/9.5 Mini DIN Female Low PIM Connector Solder Attachment for TFT-5G-402

Name: 4.1/9.5 Mini DIN Female Low PIM Connector Solder Attachment for TFT-5G-402
Brand: Pasternack
SKU: TC-402-4195F-LP
Availability: LimitedAvailability

Product ID: TC-402-4195F-LP

Pricing

Price: $7.69

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 6

Same-Day Shipping!

Order in the next hours!

Product discontinued when current inventory is depleted.

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	4.1/9.5 Mini DIN
Connector Gender	Female
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Solder/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	6 GHz

Description

4.1/9.5 Mini DIN Female Low PIM Connector Solder Attachment for TFT-402

TC-402-4195F-LP 4.1/9.5 Mini DIN female coaxial connector has an interface type of TFT-402 and a 50 Ohm impedance. Pasternack 4.1/9.5 Mini DIN female connector uses shield/contact solder/solder as an attachment method. Our female 4.1/9.5 Mini DIN coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack 4.1/9.5 Mini DIN female coaxial connector has a PTFE dielectric type and a VSWR of 1.35. The Pasternack 4.1/9.5 Mini DIN coaxial connector has a brass body with tri-metal plating. Our TC-402-4195F-LP 4.1/9.5 Mini DIN connector uses phosphor bronze contact and a tri-metal plating material. This 4.1/9.5 Mini DIN female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female 4.1/9.5 Mini DIN connector will ship the same day as purchased. Our 4.1/9.5 Mini DIN female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 4.1/9.5 Mini DIN connector cable assemblies that will ship the same day as well.
