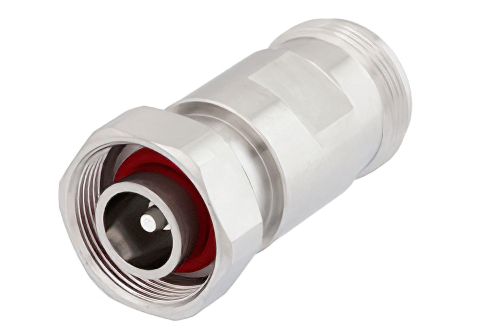

4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Female Adapter, IP67 UnMated

Name: 4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Female Adapter, IP67 UnMated
Brand: Pasternack
SKU: PE91232
Availability: Discontinued

Product ID: PE91232

Product discontinued.

Search for alternative Adapters or contact us.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	4.1/9.5 Mini DIN
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Impedance 1	50 Ohm
Connector Series 2	4.1/9.5 Mini DIN
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Impedance 2	50 Ohm
Frequency, Min	DC
Frequency, Max	6 GHz
Adapter Body Style	Straight
Connector Mount Method 1	None
Connector Body Material 1	Brass
Connector Body Plating 1	Tri-Metal
Connector Mount Method 2	None
Connector Body Material 2	Brass
Connector Body Plating 2	Tri-Metal

Description

4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Female Adapter, IP67 UnMated

4.1/9.5 Mini DIN adapter PE91232 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our 4.1/9.5 Mini DIN to 4.1/9.5 Mini DIN adapter is a in-series coaxial adapter design. This 50 Ohm 4.1/9.5 Mini DIN adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 6 GHz.

4.1/9.5 Mini DIN male to 4.1/9.5 Mini DIN female adapter is one of the many RF components that ship same day as they are ordered. PE91232 male 4.1/9.5 Mini DIN to female 4.1/9.5 Mini DIN adapter has a straight body. This Pasternack straight 4.1/9.5 Mini DIN coax adapter is a in-line RF adapter.

Our male 4.1/9.5 Mini DIN to female 4.1/9.5 Mini DIN adapter PE91232 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This 4.1/9.5 Mini DIN to 4.1/9.5 Mini DIN radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
