7/16 DIN Male to 4.1/9.5 Mini DIN Male Cable Assemblies

Check out our new RF calculators & conversion tools...

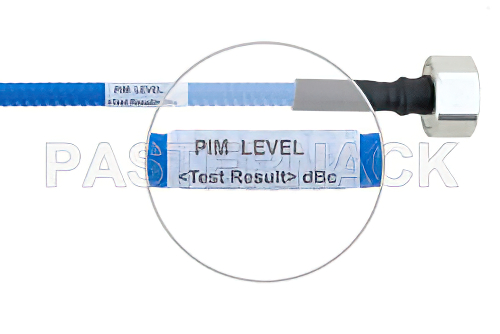

4.1/9.5 Mini DIN Male to 7/16 DIN Male Cable Using SPP-250-LLPL Coax

Product ID: PE3C4134
4.1/9.5 Mini DIN Male to 7/16 DIN Male Cable Using SPP-250-LLPL Coax


Image Views:  4.1/9.5 Mini DIN Male to 7/16 DIN Male Cable Using SPP-250-LLPL Coax high resolution
Zoomalternate image
View 2


Click for:PE3C4134 Datasheet
Click for:PE3C4134 RoHS Cert
Click for:PE3C4134 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.

Click on the below images to access KitBOM product pages:


PE45424SPP-250-LLPLPE45421KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 17/16 DIN
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 24.1/9.5 Mini DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberSPP-250-LLPL
RF Cable TypeSPP-250-LLPL
RF Cable Impedance50 Ohm


7/16 DIN Male to 4.1/9.5 Mini DIN Male Cable Using SPP-250-LLPL Coax, LF Solder

PE3C4134 is a 7/16 DIN male to 4.1/9.5 Mini DIN male cable using SPP-250-LLPL coax. This Pasternack 7/16 DIN male to 4.1/9.5 Mini DIN male cable assembly uses a 50 Ohm 7/16 DIN for connector 1 and a 50 Ohm 4.1/9.5 Mini DIN for connector 2.

Our male 7/16 DIN to male 4.1/9.5 Mini DIN cable assembly uses a corrugated cable type that is 50 Ohm. Pasternack PE3C4134 7/16 DIN male to 4.1/9.5 Mini DIN male cable assembly is constructed with SPP-250-LLPL coax.
