7/16 DIN Male to 4.3-10 Male Cable Assemblies

Check out our new RF calculators & conversion tools...

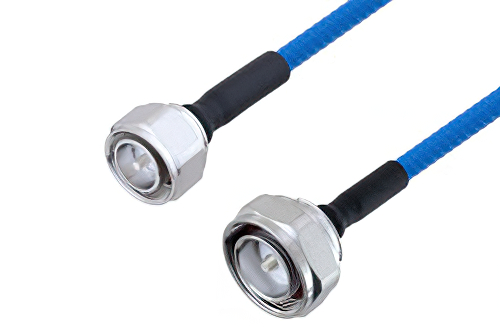

Plenum 4.3-10 Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

Product ID: PE3C4135-100CM
Plenum 4.3-10 Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

Image Views:  Plenum 4.3-10 Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS high resolution
Zoom


Click for:PE3C4135-100CM Datasheet
Click for:PE3C4135-100CM RoHS Cert
Click for:PE3C4135-100CM REACH Cert
Available Quantity: 17
Standard Lengths
200 cm.
Pricing Table
QUANTITYPRICE
1-1$99.07
2-4$97.09
5-9$95.11
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 14.3-10
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 27/16 DIN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberSPP-250-LLPL
RF Cable TypeSPP-250-LLPL
RF Cable Impedance50 Ohm


Plenum 4.3-10 Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4135-100CM is a 4.3-10 male to 7/16 DIN male cable using SPP-250-LLPL coax. This Pasternack 4.3-10 male to 7/16 DIN male cable assembly uses a 50 Ohm 4.3-10 for connector 1 and a 50 Ohm 7/16 DIN for connector 2.

Our male 4.3-10 to male 7/16 DIN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4135-100CM 4.3-10 male to 7/16 DIN male cable assembly is constructed with SPP-250-LLPL coax and the maximum VSWR is 1.35:1.
