Type N to 4.3-10 Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

Low PIM 4.3-10 Male to N Female Adapter

Product ID: PE91389

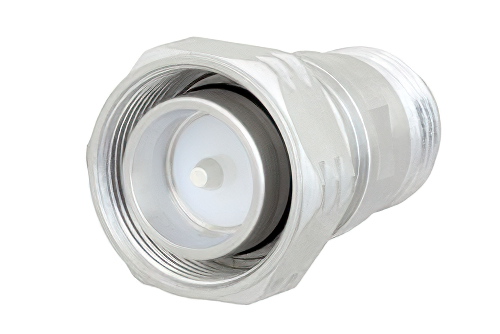

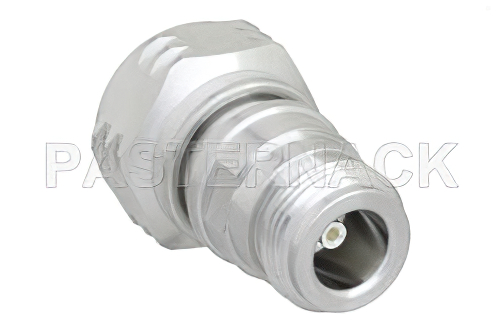

Low PIM 4.3-10 Male to N Female Adapter


Image Views:  Low PIM 4.3-10 Male to N Female Adapter high resolution
Zoomalternate image
View 2


Click for:PE91389 Datasheet
Click for:PE91389 RoHS Cert
Click for:PE91389 REACH Cert
Available Quantity: 184
Pricing Table
QUANTITYPRICE
1-24$81.07
25-49$75.40
50-99$69.72
100-249$64.86
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 14.3-10
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max6 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Tri-Metal
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Tri-Metal


Low PIM 4.3-10 Male to N Female Adapter

4.3-10 adapter PE91389 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our 4.3-10 to type N adapter is a between series coaxial adapter design. This 50 Ohm 4.3-10 adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 6 GHz.

4.3-10 male to N type female adapter is one of the many RF components that ship same day as they are ordered. PE91389 male 4.3-10 to female type N adapter has a straight body. This Pasternack straight 4.3-10 coax adapter is a in-line RF adapter.

Our male 4.3-10 to female type N adapter PE91389 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This 4.3-10 to type N radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
