4.3-10 Male Straight Connectors

Check out our new RF calculators & conversion tools...

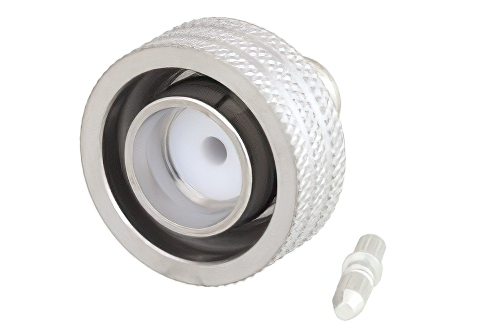

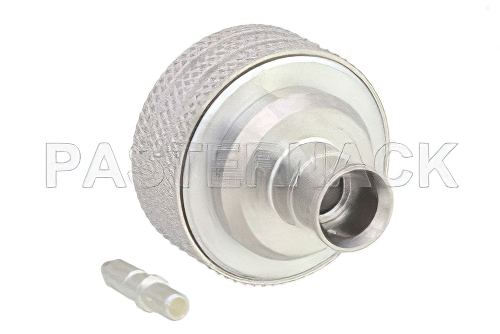

4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/4SFHC, IP67 Rated

Product ID: PE45297
4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/4SFHC, IP67 Rated


Image Views:  4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/4SFHC, IP67 Rated high resolution
Zoomalternate image
View 2


Click for:PE45297 Datasheet
Click for:PE45297 RoHS Cert
Click for:PE45297 REACH Cert
Available Quantity: 48
Pricing Table
QUANTITYPRICE
1-24$39.36
25-49$36.60
50-99$33.85
100-249$31.49
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series4.3-10
Connector GenderMale
Body StyleStraight
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/4SFHC, IP67 Rated

PE45297 4.3-10 male coaxial push-on connector has an interface type of PE-1/4SFHC and a impedance. Pasternack 4.3-10 male connector uses shield/contact solder/solder as an attachment method. Our male 4.3-10 coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack 4.3-10 male coaxial push-on connector has a ptfe dielectric type and a VSWR of 1.12. The Pasternack 4.3-10 coaxial connector has a brass body with tri-metal plating. Our PE45297 4.3-10 connector uses brass contact. This 4.3-10 male coaxial push-on RF connector is REACH compliant.

This Pasternack male 4.3-10 connector will ship the same day as purchased. Our 4.3-10 male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 4.3-10 connector cable assemblies that will ship the same day as well.
