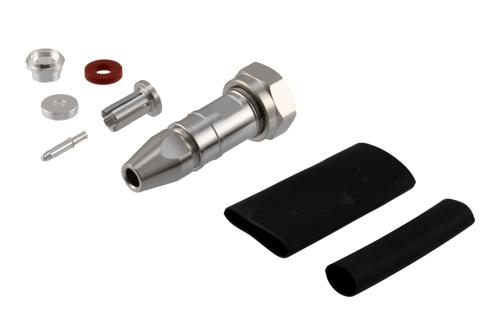

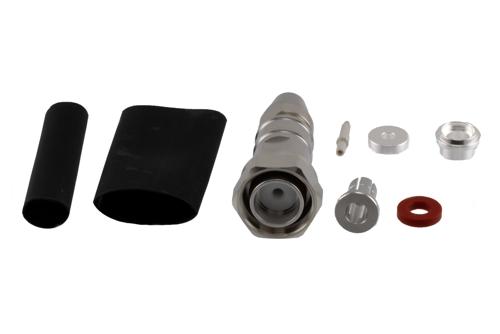

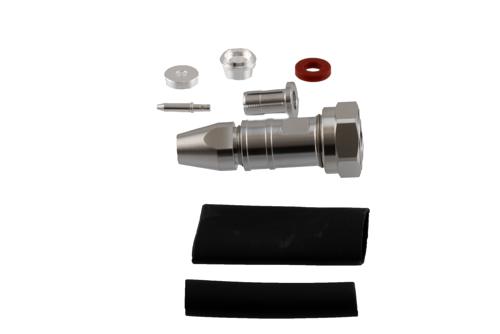

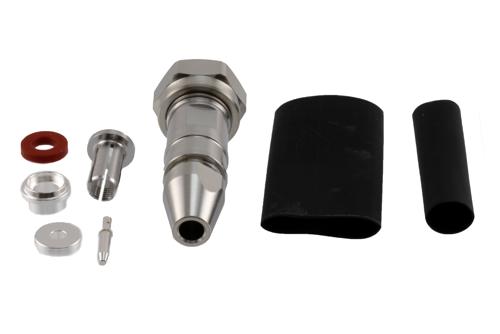

TCP-240-4310MC-LP 4.3-10 male coaxial connector has an interface type of 4.3-10 male which is compatible with TCOM-240, TCOM-240-FR, LMR-240, LMR-240-DB, LMR-240-FR, LMR-240-UF, LMR-LW240 and PE-C240 cables and has an impedance of 50 Ohms. Pasternack's 4.3-10 male connector uses clamp/solder as an attachment method. Our male 4.3-10 coaxial connector provides a maximum frequency of 6 GHz. This RF connector has low passive intermodulation of a -160dBc. This 4.3-10 male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack 4.3-10 male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's 4.3-10 coaxial connector has a brass body with tri-metal plating. Our TCP-240-4310MC-LP 4.3-10 connector uses asilver-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. Our high-quality TCP-240-4310MC-LP features a 100 µin minimum body plating specification. The TCP-240-4310MC-LP 4.3-10 low PIM connector operates at a temperature range of -40 to 125 deg C. This threaded male 4.3-10 coaxial RF connector has a maximum insertion loss of 0.245 dB. This 4.3-10 connector has a silver inner contact plating. The Pasternack low PIM 4.3-10 male connector has a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. It also consists of a brass retaining ring that meets silver compliance. Our 4.3-10 male connector has a length of 1.51 inches, a width of 0.866 inches, and a weight of 0.11 lbs.
This Pasternack low PIM male 4.3-10 connector will ship the same business day as purchased. Our 4.3-10 male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
