40 dB Gain, 22 dBm P1dB, 1 GHz to 40 GHz, Broadband High Gain Amplifier, Bench-Top, 5 dB NF, 2.92mm

Product ID: PE15A3595
40 dB Gain, 22 dBm P1dB, 1 GHz to 40 GHz, Broadband High Gain Amplifier, Bench-Top, 5 dB NF, 2.92mm

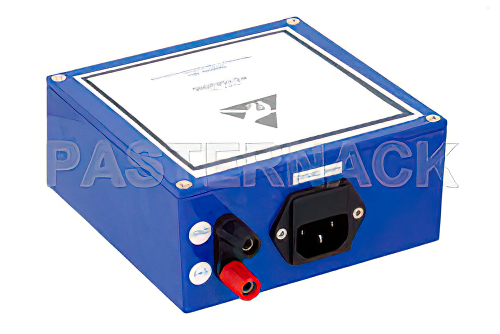

Image Views:  40 dB Gain, 22 dBm P1dB, 1 GHz to 40 GHz, Broadband High Gain Amplifier, Bench-Top, 5 dB NF, 2.92mm high resolution
Zoomalternate image
View 2


Click for:PE15A3595 Datasheet
Click for:PE15A3595 REACH Cert
Available Quantity: 3
Pricing Table
QUANTITYPRICE
1-1$16,004.27
2-4$15,044.01
5-9$14,243.80
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Power Output22 dBm P1dB
Frequency, Min1,000 MHz
Frequency, Max40 GHz
Gain, Typical40 dB
Connector Series2.92mm


40 dB Gain, 22 dBm P1dB, 1 GHz to 40 GHz, Broadband High Gain Amplifier, Bench-Top, 5 dB NF, 2.92mm

PE15A3595 high gain broadband amplifier from Pasternack is featured in our extensive in-stock RF amplifier selection. Our connectorized high gain broadband amplifier uses 2.92mm connectors at 50 Ohm. This 2.92mm broadband high gain amplifier has wide-band capability with a minimum frequency of 1,000 MHz and maximum frequency of 40 GHz. The typical gain of this broad-band high gain radio frequency amplifier is 40 dB.

Pasternack broadband high gain amplifier PE15A3595 is rated at 22 dBm P1dB. Our broad band high gain radio frequency amp is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial broadband high gain amplifier can ship worldwide the same day of the purchase as with our other available RF parts.
