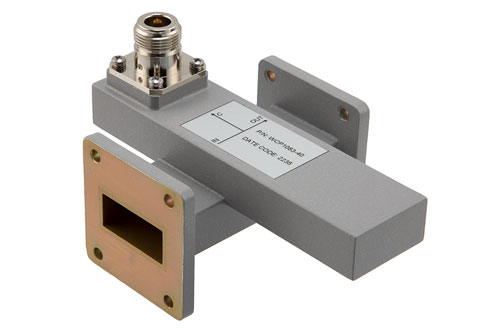

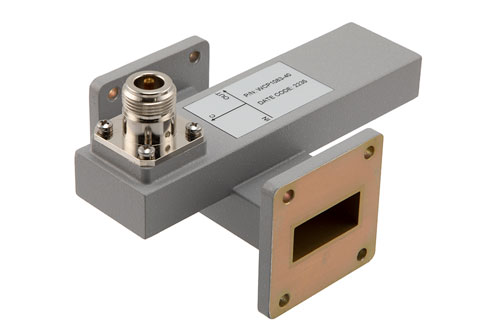

WR-112 Waveguide 40 dB Crossguide Coupler, UG Cover Flange, N Female Coupled Port, 6.57 GHz to 9.99 GHz, Aluminum

Name: WR-112 Waveguide 40 dB Crossguide Coupler, UG Cover Flange, N Female Coupled Port, 6.57 GHz to 9.99 GHz, Aluminum
Brand: Pasternack
SKU: PEWCP1083-40
Availability: InStock

Product ID: PEWCP1083-40

Pricing

Quantity	Price
1-4	$1,700.00

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 1

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications.
Waveguide Size	WR-112
Flange Size	None
Flange Type	UG Cover
Minimum Frequency	6.57 GHz
Maximum Frequency	9.99 GHz
Maximum VSWR	1.25:1
Coupling	40 dB

Description

WR-112 Waveguide 40 dB Crossguide Coupler, UG Cover Flange, N Female Coupled Port, 6.57 GHz to 9.99 GHz, Aluminum

The PEWCP1083-40 is a 40 dB WR-112 three port crossguide coupler with intergrated N Female connector for the coupled port. This coupler can be mounted directly into the waveguide signal path, connected via coax to allow signal sampling /monitoring. The coupler has a typical VSWR of 1.1:1 and are made of Aluminum with UG Cover flanges. The PEWCP1083-40 is part of a family of cross guide couplers offered by Pasternack with coupling values ranging from 20 to 50 dB.
