40 Watt RF Load Up to 2.7 GHz with 7/16 DIN Male Black Anodized Aluminum
Product ID:
PE6TR1025
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 3
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Termination Type | RF Load |
| Connector Series | 7/16 DIN |
| Connector Gender | Male |
| Minimum Frequency | 698 MHz |
| Maximum Frequency | 2.7 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.15:1 |
| Maximum Power | 40 Watt |
Description

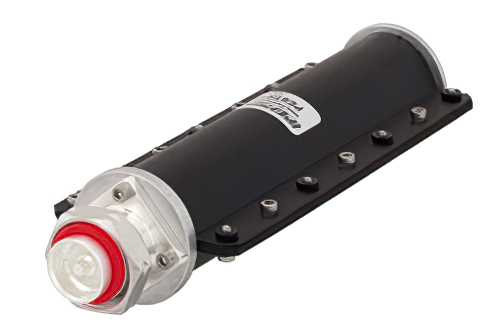

40 Watt RF Load Up to 2.7 GHz with 7/16 DIN Male Black Anodized Aluminum
PE6TR1025 40 Watts RF load (also known as termination or dummy load) has a 7/16 DIN connector that is male. This Pasternack 40 watts 7/16 DIN male load / termination is rated for a maximum frequency of 2.7 GHz. Our 7/16 DIN male termination load is a rf load termination with a 50 Ohm impedance.
This low pim 7/16 DIN load / coax terminator is manufactured with no chain. Pasternack 50 Ohm 7/16 DIN coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.15:1. PE6TR1025 40 watts 7/16 DIN male low pim load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 7/16 DIN male 40 watts termination load will ship worldwide the same day as purchased.
