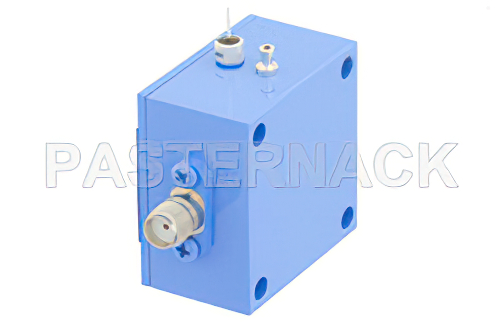

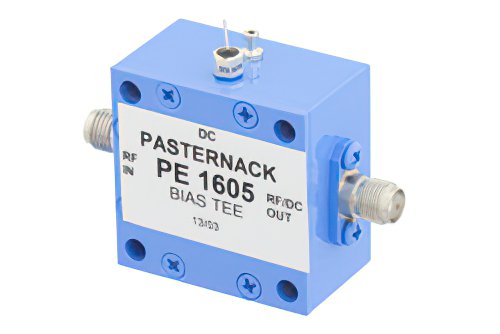

400 MHz to 10 GHz SMA Bias Tee Rated to 200 mA and 50 Volts DC

Product ID: PE1605

Pricing

QuantityPrice
1-9$537.57
10-24$510.69
25-49$483.81
50+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 66
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
RF Port Connector SeriesSMA
DC Port Connector SeriesSolder Pin
Minimum Frequency400 MHz
Maximum Frequency10 GHz
RF Port Maximum VSWR1.5:1
Maximum Voltage50 Volts
Maximum DC Current200 mA

Description

400 MHz to 10 GHz SMA Bias Tee Rated to 200 mA and 50 Volts DC

PE1605 bias tee (also called bias T) has an SMA connector RF port that is female gender. This Pasternack female SMA bias tee design is rated for a minimum frequency of 400 MHz and a maximum frequency of 10 GHz. Our RF coaxial bias tee has a solder pin DC port connector with a female gender.

This SMA bias tee / T is rated for a max. DC voltage of 50 Volts and a max. current of 200 mA. The PE1605 bias T with SMA connector series for RF port is designed with a maximum VSWR of 1.5:1 and a RF to bias isolation typical of 25 dB. Pasternack's radio frequency bias tee is one of over 40,000 RF, microwave and millimeter wave components supplied by us. Our coaxial SMA bias T can be purchased and will be shipped worldwide the same-day as with other in-stock Pasternack RF parts.
