Multi Band 41dBi GPS/GNSS Aviation Antenna 1,164-1,615 MHz TNC Female Connector IP67

Name: Multi Band 41dBi GPS/GNSS Aviation Antenna 1,164-1,615 MHz TNC Female Connector IP67
Brand: Pasternack
SKU: PEANGPS1002
Availability: InStock

Product ID: PEANGPS1002

Pricing

Quantity	Price
1-4	$1,250.00
5-9	$1,200.00
10-24	$1,150.00
25-99	$1,100.00
100+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 25

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications.
Antenna Type	GPS/GNSS
Polarization	RHCP
Minimum Frequency	1.164 GHz
Maximum Frequency	1.615 GHz
Connector Series	TNC
Connector Gender	Female
Impedance	50 Ohm

Description

Multi Band 41dBi GPS/GNSS Aviation Antenna 1,164-1,615 MHz TNC Female Connector IP67

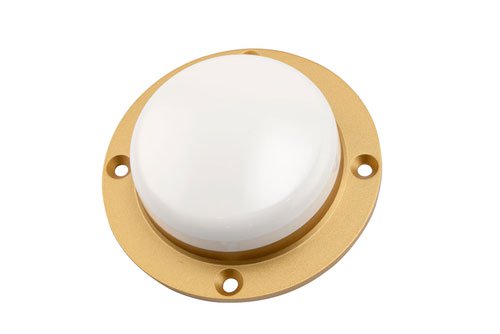

The PEANGPS1002 is an active GPS/GNSS multi band L1/L2/L5 antenna with 41dBi overall gain. This high precision antenna is IP67 rated, light weight and designed for Aviation. The active Aviation GPS/GNSS antenna is ideally suited for use in harsh operating environments where stability and reliability of GPS/GNSS signal is required.

This antenna operates in the 1.164-1.3GHz and 1.525-1.615GHz bands meeting GPS L1/L2/L5, GALILEO E1/E5a/E5b/E6 and GLONASS L1/L2/L3 requirements. The PEANGPS1002 antenna has an integrated LNA with 2 dB noise figure and typical LNA gain of 36 dB.

The PEANGPS1002 GPS antenna from Pasternack, with an axial ratio of 3 dB, can track visible satellites under extreme conditions, providing positioning solutions with accuracy for UAV navigation, autonomous tracking, or GIS surveying.
