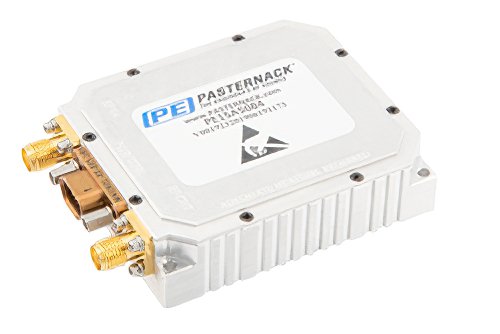

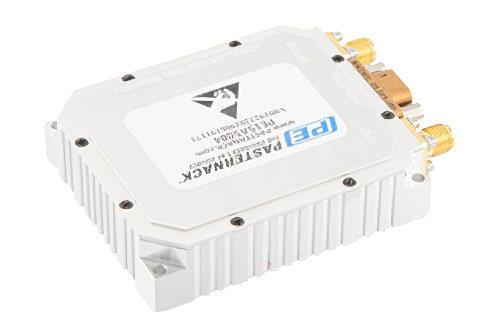

10 Watt GaN Power Amplifier, 200 MHz to 2600 MHz, Class AB, High VHF through S Bands, 40% Efficiency, 28V, SMA

Product ID: PE15A5084

Pricing

QuantityPrice
1-1$7,910.00
2-4$7,435.40
5-9$7,039.90
10+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 2
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Frequency, Min200 MHz
Frequency, Max2.6 GHz
Gain, Typical46 dB
3rd Intercept Point, Typ44 dB
Voltage, DC Typ28 Volts
Voltage, DC Max32 Volts
Current, DC Typ1,800 mA

Description

10 Watt GaN Power Amplifier, 200 MHz to 2600 MHz, Class AB, High VHF through S Bands, 40% Efficiency, 28V, SMA

RF solid state power amplifier (SSPA) PE15A5084 from Pasternack is part of the largest selection of in-stock radio frequency microwave and millimeter wave amplifiers available for same-day shipment. This Pasternack solid state RF power amplifier is a medium power amp design constructed in a connectorized package. Our SSPA is designed with SMA connectors and rated at 10 dBm.

Pasternack solid state power amplifier part number PE15A5084 SMA medium power amp has a 46 dB typical gain. The medium power high gain amp is rated with a Psat of 10 dBm. Our radio frequency medium power solid state amplifier is constructed for minimum frequency of 200 MHz and a maximum frequency of 2.6 GHz.

Additional radio frequency specs on this high frequency high gain medium power solid state power amplifier from Pasternack can be found in the details on the RF power amplifier datasheet specifications PDF above. Our medium power high gain HF amplifier is part of over one 40,000 RF, microwave and millimeter wave components in-stock. This medium power 10 dBm radio frequency amplifier is ready for same day purchase and shipping worldwide. Pasternack also stocks a wide range of other radio signal SSPAs that ship same-day from our facility for all your RF, microwave and millimeter wave amplifier component needs.
