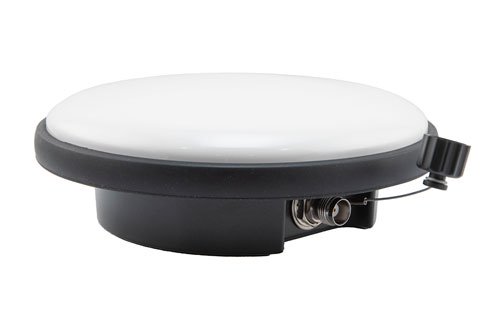

Multi Band 47dBi GPS/GNSS Survey Antenna 1,164-1,615 MHz TNC Female Connector IP69K

Name: Multi Band 47dBi GPS/GNSS Survey Antenna 1,164-1,615 MHz TNC Female Connector IP69K
Brand: Pasternack
SKU: PEANGPS1005
Availability: InStock

Product ID: PEANGPS1005

Pricing

Quantity	Price
1-4	$2,330.00
5-9	$2,236.80
10-24	$2,143.60
25-99	$2,050.40
100+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 6

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications.
Antenna Type	GPS/GNSS Active
Polarization	RHCP
Minimum Frequency	1.164 GHz
Maximum Frequency	1.615 GHz
Connector Series	TNC
Connector Gender	Female
Impedance	50 Ohm

Description

Multi Band 47dBi GPS/GNSS Survey Antenna 1,164-1,615 MHz TNC Female Connector IP69K

The PEANGPS1005 is an active GPS/GNSS multi band L1/L2/L5 antenna with 47.5 dBi overall gain. This high precision ruggedized antenna is IP69K rated, light weight and designed for Survey. The active Survey GPS/GNSS antenna is ideally suited for use in harsh operating environments where stability and reliability of GPS/GNSS signal is required.

This antenna operates in the 1.164-1.3GHz and 1.525-1.615GHz bands meeting GPS L1/L2/L5, GALILEO E1/E6/E5a/E5b and GLONASS L1/L2/L3 requirements. The PEANGPS1005 antenna has an integrated LNA with 2 dB noise figure and typical LNA gain of 40 dB.

The PEANGPS1005 GPS/GNSS antenna from Pasternack, with an axial ratio of 3 dB, can track visible satellites under extreme conditions, providing positioning solutions with accuracy for UAV navigation, autonomous tracking, or GIS surveying.
