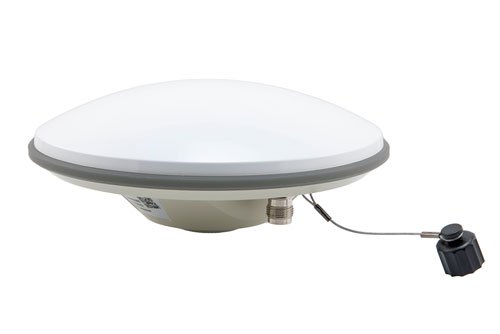

Dual Band 47dBi GPS/GNSS Survey Antenna 1,205-1,615 MHz TNC Female Connector IP67

Name: Dual Band 47dBi GPS/GNSS Survey Antenna 1,205-1,615 MHz TNC Female Connector IP67
Brand: Pasternack
SKU: PEANGPS1003
Availability: InStock

Product ID: PEANGPS1003

Pricing

Quantity	Price
1-4	$705.00
5-9	$676.80
10-24	$648.60
25-99	$620.40
100+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 33

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications.
Antenna Type	GPS/GNSS
Polarization	RHCP
Minimum Frequency	1.205 GHz
Maximum Frequency	1.615 GHz
Connector Series	TNC
Connector Gender	Female
Impedance	50 Ohm

Description

Dual Band 47dBi GPS/GNSS Survey Antenna 1,205-1,615 MHz TNC Female Connector IP67

The PEANGPS1003 is an active GPS/GNSS dual band L1/L2 antenna with 47.5 dBi overall gain. This high precision antenna is IP67 rated, light weight and designed for Survey. The active Survey GPS/GNSS antenna is ideally suited for use in harsh operating environments where stability and reliability of GPS/GNSS signal is required.

This antenna operates in the 1.205-1.278GHz and 1.559-1.615GHz bands meeting GPS L1/L2, GALILEO E1 and GLONASS L1/L2 requirements. The PEANGPS1003 antenna has an integrated LNA with 2 dB noise figure and typical LNA gain of 40 dB.

The PEANGPS1003 GPS antenna from Pasternack, with an axial ratio of 3 dB, can track visible satellites under extreme conditions, providing positioning solutions with accuracy for UAV navigation, autonomous tracking, or GIS surveying.
