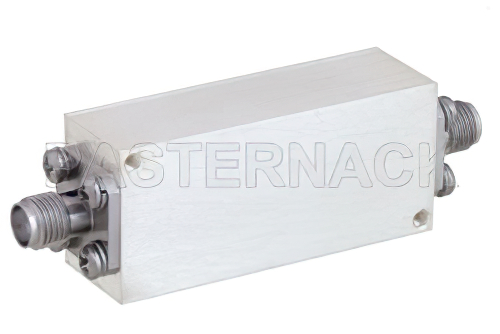

5 Section Lowpass Filter With SMA Female Connectors Operating From DC to 400 MHz

Product ID: PE8726
5 Section Lowpass Filter With SMA Female Connectors Operating From DC to 400 MHz


Image Views:  5 Section Lowpass Filter With SMA Female Connectors Operating From DC to 400 MHz high resolution
Zoomalternate image
View 2


Click for:PE8726 Datasheet
Click for:PE8726 RoHS Cert
Click for:PE8726 REACH Cert
Available Quantity: 18
Pricing Table
QUANTITYPRICE
1-24$231.95
25-49$215.71
50-99$199.48
100-249$185.56
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Min FrequencyDC
Max Frequency400 MHz
Maximum Insertion Loss1 dB
Impedance50 Ohm
Input Max VSWR1.5:1
Maximum Power10 Watts
Connector-In SeriesSMA
Connector-In GenderFemale
Connector-Out SeriesSMA
Connector-Out GenderFemale


5 Section Lowpass Filter With SMA Female Connectors Operating From DC to 400 MHz With a 400 MHz Passband

Lowpass filter PE8726 from Pasternack is part of our extensive line of in-stock RF components for sale. Our lowpass filter is manufactured with SMA connectors that are female and in a 5 section design. This 5 section SMA low pass filter has a VSWR of 1.5 and a maximum power of 10 Watts.

Frequency range of this lowpass filter is DC to 400 MHz and the passband is 400 MHz. PE8726 lowpass filter is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our 5 section low pass filter can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
