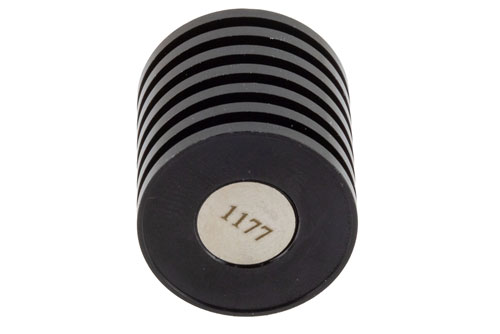

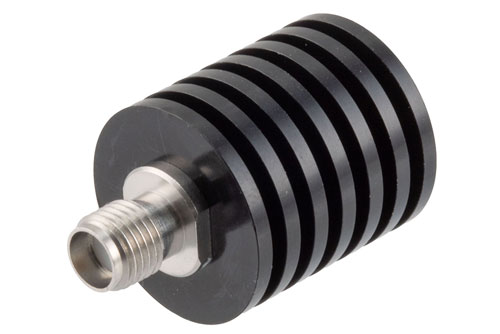

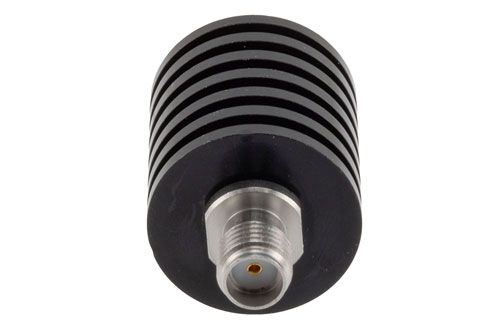

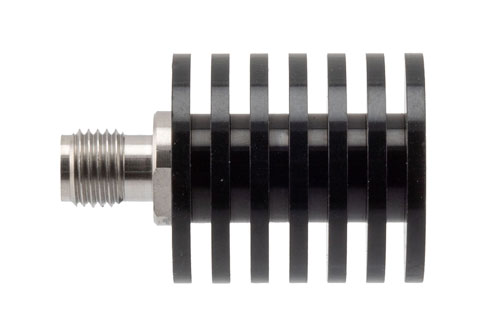

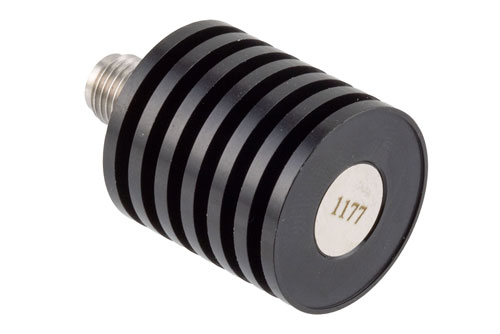

Pasternack’s PE6TR1177 RF load termination (also known as a dummy load) has a SMA female connector. This Pasternack SMA female load / termination is rated for a maximum frequency of 18 GHz. Our SMA female RF termination comes with a 50 Ohm impedance. The max input power rating (CW) of this RF termination is 5 Watts. Make your online purchase right now to take advantage of our same-day shipping.
This SMA terminator is manufactured with a stainless steel body. Pasternack's 50 Ohm SMA coaxial termination has a maximum input power (CW) of 5 Watts and a maximum VSWR of 1.2:1. This RF termination is commonly used to terminate devices such as couplers, circulators, hybrids, and combiners. Additional dimensions and specifications for this RF load termination are on our downloadable PDF datasheet above.
Pasternack's PE6TR1177 terminator has a SMA connector and is designed to withstand temperatures between -55 to +70 deg C. Our RF load termination is an indispensable component in many RF, microwave and millimeter wave systems where signal reflection from unused ports can potentially damage the device or reduce signal integrity. This 5 Watts RF termination has a heatsink body that is designed to provide adequate heat dissipation within its full frequency of operation. Our radio frequency termination is suitable for wireless, SatCom, radar systems, test and measurement, commercial and military communications applications.
Pasternack is where to buy a 18 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. Our 5 watt SMA female load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our RF load termination load will ship worldwide the same business day as purchased.
