Pasternack’s PE6TR1164 RF load termination (also known as a dummy load) has a SMA male connector. This Pasternack SMA male load/termination is rated for a maximum frequency of 26.5 GHz. Our SMA male termination load is a RF Load termination with a 50 Ohm impedance. The maximum input power rating (CW) of this RF termination is 5 Watts.

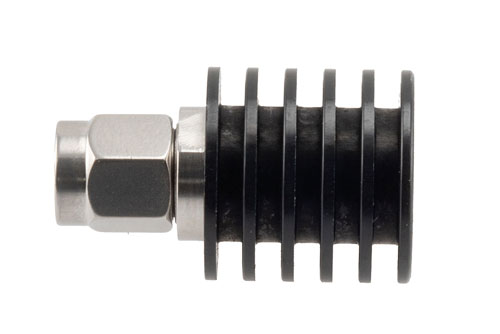

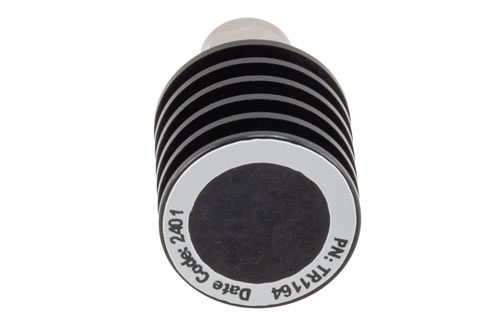

This SMA terminator is manufactured with a black anodized aluminum housing body. Pasternack’s 50 Ohm SMA coaxial termination has a maximum input power of 5 Watts and a maximum VSWR of 1.3:1. This connectorized RF termination is commonly used to terminate devices such as couplers, circulators, hybrids, and combiners. Additional dimensions and specifications for this RF Load termination are on our downloadable PDF datasheet above.
Pasternack’s PE6TR1164 terminator has a SMA connector and is designed to withstand temperatures between -55 to 125 deg C. This RF load termination has a 5 Watts maximum input power (CW) and 500 Watts peak power. Our RF Load/termination is an indispensable component in many RF, microwave, and millimeter wave systems where signal reflection from unused ports can potentially damage the device or reduce signal integrity. This 5 Watts RF termination has a heatsink body that is designed to provide adequate heat dissipation within its full frequency of operation. Our radio frequency termination is suitable for wireless, satcom, radar systems, test and measurement and commercial and military communications applications.
Pasternack is where to buy a 26.5 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. Our 5 Watts SMA male load termination is one of over 40,000 RF, microwave, and millimeter wave components in-stock at Pasternack. Our RF Load termination will ship worldwide the same business day as purchased.
