Standard SMA 5 Watts Dummy Loads

Check out our new RF calculators & conversion tools...

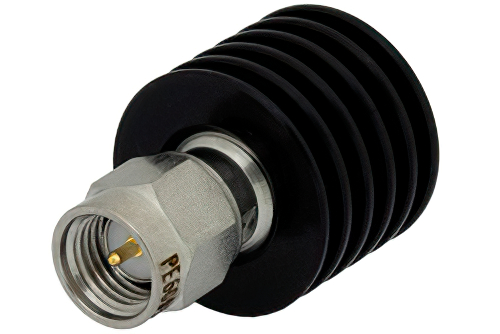

5 Watt RF Load Up to 18 GHz With SMA Male Input Black Anodized Aluminum Heatsink

Product ID: PE6095
5 Watt RF Load Up to 18 GHz With SMA Male Input Black Anodized Aluminum Heatsink


Image Views:  5 Watt RF Load Up to 18 GHz With SMA Male Input Black Anodized Aluminum Heatsink high resolution
Zoomalternate image
View 2


Click for:PE6095 Datasheet
Click for:PE6095 RoHS Cert
Click for:PE6095 REACH Cert
Available Quantity: 493
Pricing Table
QUANTITYPRICE
1-24$111.23
25-49$103.44
50-99$95.66
100-249$88.98
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesSMA
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency18 GHz
Impedance50 Ohm
Maximum VSWR1.25:1
Maximum Power5 Watt


50 Ohm 5 Watts Black Anodized Aluminum Heatsink SMA Male RF Load Up To 18 GHz

PE6095 5 Watts RF load (also known as termination or dummy load) has a SMA connector that is male. This Pasternack 5 watts SMA male load / termination is rated for a maximum frequency of 18 GHz. Our SMA male termination load is a rf load termination with a 50 Ohm impedance.

This SMA load / coax terminator is manufactured with no chain and passivated stainless steel body. Pasternack 50 Ohm SMA coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.25:1. PE6095 5 watts SMA male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our SMA male 5 watts termination load will ship worldwide the same day as purchased.
