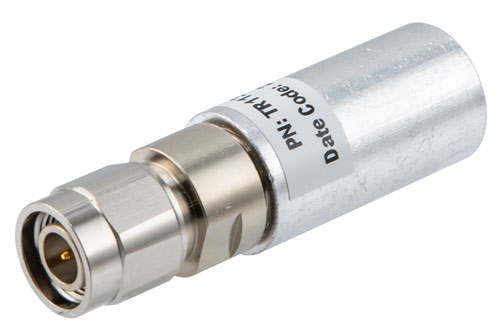

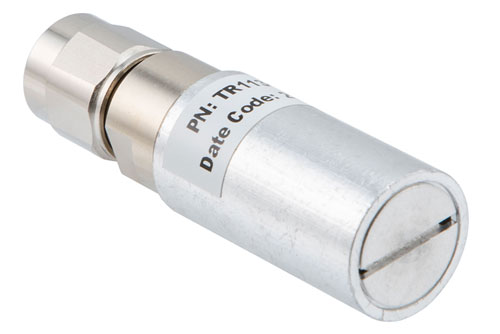

Pasternack's PE6TR1134 RF load termination (also known as a dummy load) has a TNC male connector. This Pasternack 5 watt TNC male load / termination is rated for a maximum frequency of 12.4 GHz. Our TNC male termination load is a RF load termination with a 50 Ohm impedance. The max input power rating (CW) of this RF termination is 5 Watts.
This TNC coax terminator is manufactured with a aluminum housing body. Pasternack's 50 Ohm TNC coaxial termination has a maximum input power of 5 Watts and a maximum VSWR of 1.25:1. Additional TNC male RF load specs for this component can be found on its radio frequency termination load PDF specification datasheet above.
Pasternack's PE6TR1134 has a TNC connector and is designed to withstand temperatures between -55 to +85 deg C. This RF load termination has a 5 Watts and a maximum input power and 500 Watts peak power. Our coax termination is suitable for WIFI 6E, 5G cellular bands, SatCom, radar systems, test and measurement, commercial and military communication applications.
Pasternack is where to buy a 12.4 GHz RF load/termination for quick shipment worldwide because this is only one of more than a million RF parts/components we have available. Our 5 watt TNC male load termination is one of over 40,000 RF, microwave, and millimeter wave components in-stock at Pasternack. Our TNC male 5 watt termination load will ship worldwide the same day as purchased.
