IQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm

Product ID: PE86X9006
IQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm

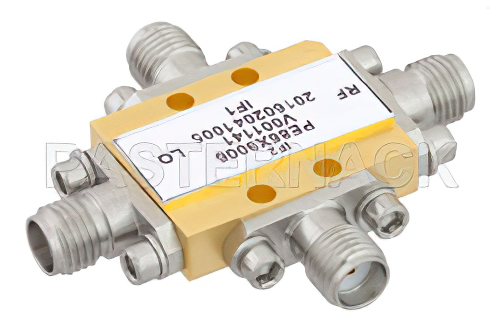

Image Views:  IQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm high resolution
Zoomalternate image
View 2


Click for:PE86X9006 Datasheet
Click for:PE86X9006 RoHS Cert
Available Quantity: 4
Pricing Table
QUANTITYPRICE
1-1$4,027.86
2-4$3,786.19
5-9$3,584.80
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
RF Connector Series2.92mm
RF Connector GenderFemale
LO Connector Series2.92mm
LO Connector GenderFemale
IF Connector SeriesSMA
IF Connector GenderFemale
RF Minimum Frequency30 GHz
RF Maximum Frequency38 GHz
LO Minimum Frequency30 GHz
LO Maximum Frequency38 GHz
IF Minimum FrequencyDC
IF Maximum Frequency3.5 GHz


IQ Mixer Operating From 30 GHz to 38 GHz With an IF Range From DC to 3.5 GHz And LO Power of +17 dBm, Field Replaceable 2.92mm

RF iq mixer (also referred to as a frequency mixer) PE86X9006 from Pasternack has 2.92mm connector. This 2.92mm iq mixer is manufactured with a impedance and has a RF to LO isolation of dB.

This radio frequency iq mixer has a RF frequency range of 30 GHz for the minimum and 38 GHz for the maximum. PE86X9006 iq frequency mixer LO frequency range is 30 GHz for the minimum and 38 GHz for the maximum. Our frequency mixer that is iq has an IF frequency range of DC for a minimum and 3.5 GHz for a maximum.

Iq mixer from Pasternack is rated for a third order intercept point of dBm. This 50 Ohm 2.92mm iq frequency mixer is part of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our iq mixer is in-stock and Pasternack is where to buy your RF mixer components for same day shipping throughout the United States and internationally, as with all other Pasternack radio frequency parts.
