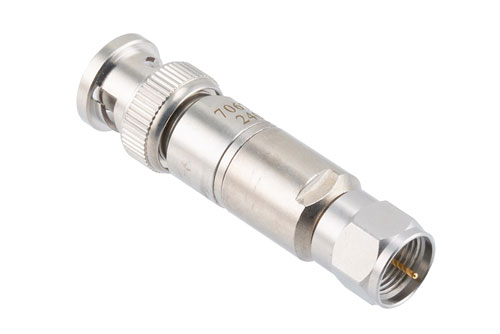

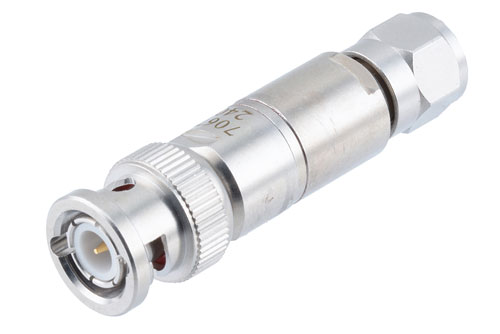

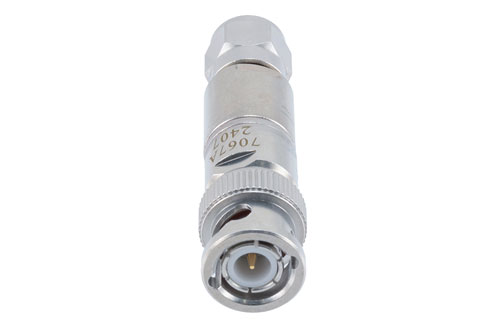

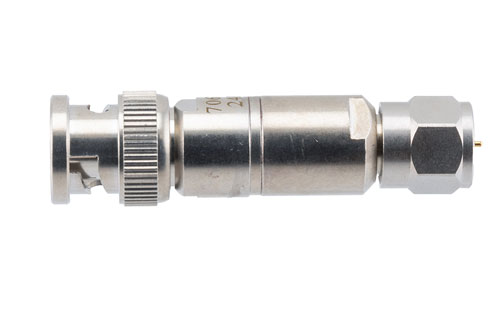

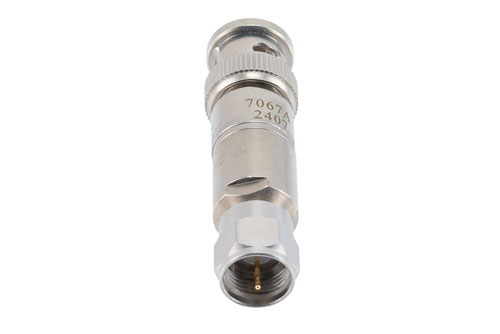

50 Ohm BNC Male to 75 Ohm F Male Matching Pad Operating from DC to 3 GHz
Product ID:
PE7067A
Pricing
| Quantity | Price |
| 1-9 | $109.00 |
| 10-24 | $104.64 |
| 25-99 | $100.28 |
| 100-249 | $95.92 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 20
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Connector In Series |
BNC |
| Connector In Gender |
Male |
| Connector In Impedance |
50 Ohm |
| Connector Out Series |
F |
| Connector Out Gender |
Male |
| Connector Out Impedance |
75 Ohm |
| Minimum Frequency |
DC |
| Maximum Frequency |
3 GHz |
| Maximum VSWR |
1.25:1 |
| Maximum Attenuation |
7.5 |
Description
50 Ohm BNC Male to 75 Ohm F Male Matching Pad Operating from DC to 3 GHz
Pasternack’s PE7067A is a 50 ohm BNC male to 75 ohm F male matching pad that operates from DC to 3 GHz. This BNC to F impedance matching pad offers a low VSWR of 1.25:1 max and attenuation of 7.5 dB max. PE7067A 50 ohm to 75 ohm minimum loss pad has a maximum CW power rating of 0.5 Watt. Matching pads are used to match the different impedance between two devices, maximizing power transfer between the two impedances. Pasternack’s minimum loss impedance matching pads are available in various connector combinations to fit your needs, all of which ship the same day.
