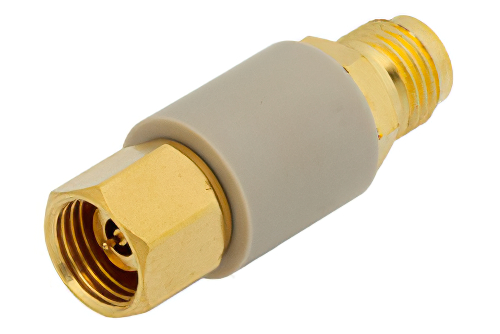

DC Block on Inner and Outer Conductor 2.4mm Male to 2.4mm Female Operating From 100 MHz to 50 GHz

Product ID: PE8239
DC Block on Inner and Outer Conductor 2.4mm Male to 2.4mm Female Operating From 100 MHz to 50 GHz


Image Views:  DC Block on Inner and Outer Conductor 2.4mm Male to 2.4mm Female Operating From 100 MHz to 50 GHz high resolution
Zoomalternate image

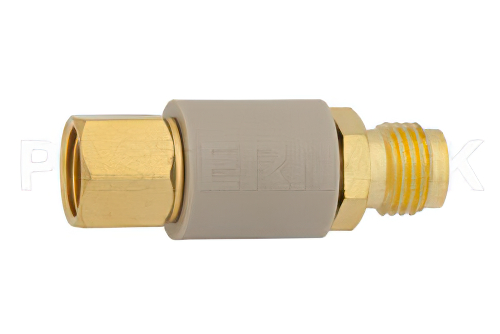

View 2


Click for:PE8239 Datasheet
Click for:PE8239 RoHS Cert
Click for:PE8239 REACH Cert
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-1$1,912.05
2-4$1,835.57
5-9$1,759.09
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Block TypeInner/Outer
Impedance50 Ohm
Connector In Series2.4mm
Connector In GenderMale
Connector Out Series2.4mm
Connector Out GenderFemale
Minimum Frequency100 MHz
Maximum Frequency50 GHz
Maximum VSWR1.75:1


DC Block on Inner and Outer Conductor 50 Ohm 2.4mm Male to 2.4mm Female Operating From 100 MHz to 50 GHz

PE8239 is a coaxial RF DC block is from Pasternack and has an 50 Ohm impedance. Our 50 Ohm DC block is manufactured with a 2.4mm input and 2.4mm output. This 2.4mm DC block is an inner/outer direct current block type.

Pasternack inner/outer 2.4mm DC block is rated for a minimum frequency of 100 MHz and a maximum frequency of 50 GHz. PE8239 2.4mm inner/outer DC block has a maximum insertion loss of 1.5 dB and a maximum VSWR of 1.75:1.

This inner/outer 2.4mm RF direct current block is just one of over 40,000 components for RF, microwave and millimeter wave applications supplied by Pasternack. Our coaxial DC block with 2.4mm connectors is available to buy and be shipped globally the same day as with Pasternack's other RF parts in stock.
