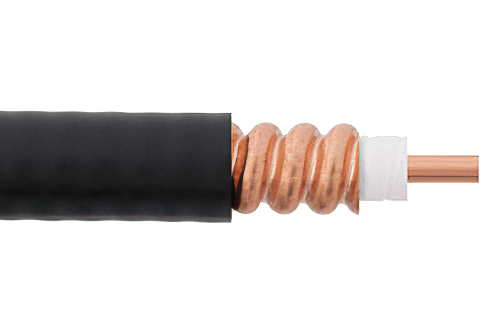

Low Loss 1/4 Superflexible Helical Corrugated Coax Cable with Black PE Jacket
Product ID:
PE-1/4SFHC
Pricing
| Quantity (Feet) | Price |
| 1-24 | $7.69 |
| 25-49 | $7.31 |
| 50-99 | $6.92 |
| 100-249 | $6.61 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties.
* Quantity selected indicates total length of bulk cable
(i.e. inputing 10 indicates a 10 foot section),
Contact us for alternate requirements.
* Contact us for different unit of measure(inches,meters, etc.) requirements.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | 1/4 Superflexible Helical |
| Flex Type | Corrugated |
| Impedance | 50 Ohm |
| Dielectric Type | PE (F) |
| Velocity of Propagation | 82 % |
| Jacket Diameter | 0.303 in |
| Jacket Material | PE |
| No. of Shields | 1 |
| Attenuation at 1 Ghz. | 5.85 dB |
| RF Shielding | 120 dB |
| Frequency, Max | 20.4 GHz |
| Max Operating Temperature | 85 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 0.5 in |
| Minimum Bend Radius, Repeated | 1 in |
| Coax Type | Coax |
Description
Low Loss 1/4 Superflexible Helical Corrugated Coax Cable with Black PE Jacket
PE-1/4SFHC part number from Pasternack is a 1/4 Superflexible Helical coax cable that is corrugated. Pasternack 1/4" Superflexible corrugated coax cable is 50 Ohm and has a PE (F) dielectric. Our 1/4" Superflexible coax is constructed with a 0.303 jacket made of PE. 1/4" Superflexible coax has a shield count of 1, a RF shielding of 120 dB and the maximum frequency for this Pasternack cable is 20.4 GHz. 1/4" Superflexible coax cable has an attenuation at 1 GHz of 5.85 dB.
Pasternack 1/4 Superflexible Helical coax cables are part of over 40,000 RF, microwave and millimeter wave components. 1/4" Superflexible cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using 1/4" Superflexible or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
