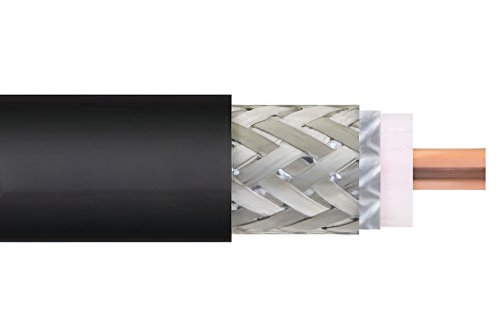

Low Loss Flexible LMR-500-DB Outdoor/Watertight Rated Coax Cable Double Shielded with Black PE Jacket

Name: Low Loss Flexible LMR-500-DB Outdoor/Watertight Rated Coax Cable Double Shielded with Black PE Jacket
Brand: Pasternack
SKU: LMR-500-DB

Product ID: LMR-500-DB

Pricing

Price/foot: $2.32

* All Prices are in US Dollars and do not include duties

CALL FOR QUOTE

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Generic Name	LMR-500-DB
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PE (F)
Velocity of Propagation	86 %
Jacket Diameter	0.5 in
Jacket Material	PE
No. of Shields	2
Attenuation at 1 Ghz.	3.1 dB
RF Shielding	90 dB
Frequency, Max	5.8 GHz
Max Operating Temperature	85 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	1.25 in
Minimum Bend Radius, Repeated	5 in
Coax Type	Coax

Description

Low Loss Flexible LMR-500-DB Outdoor/Watertight Rated Coax Cable Double Shielded with Black PE Jacket

LMR-500-DB part number from Pasternack is a LMR-500-DB coax cable that is flexible. Pasternack LMR-500-DB flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our LMR-500-DB coax is constructed with a 0.5 jacket made of PE. LMR-500-DB coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this Pasternack cable is 5.8 GHz. LMR-500-DB coax cable has an attenuation at 1 GHz of 3.1 dB.

Pasternack LMR-500-DB coax cables are part of over 40,000 RF, microwave and millimeter wave components. LMR-500-DB cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using LMR-500-DB or other coax can be built and shipped same day as well.

* LMR™ is a trademark of Times Microwave Systems.
