High Power Circulator With 18 dB Isolation From 698 MHz to 960 MHz, 1000 Watts And N Female

Product ID: PE8419

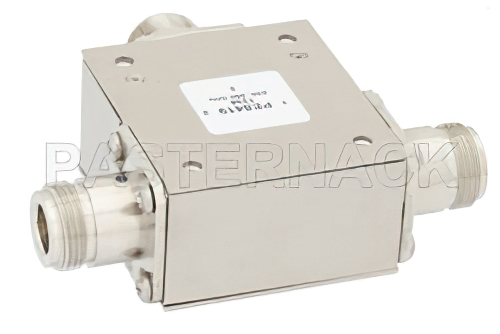

High Power Circulator With 18 dB Isolation From 698 MHz to 960 MHz, 1000 Watts And N Female


Image Views:  High Power Circulator With 18 dB Isolation From 698 MHz to 960 MHz, 1000 Watts And N Female high resolution
Zoomalternate image
View 2


Click for:PE8419 Datasheet
Click for:PE8419 RoHS Cert
Click for:PE8419 REACH Cert
Available Quantity: 22
Pricing Table
QUANTITYPRICE
1-24$432.08
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector In SeriesN
Connector In GenderFemale
Connector Out SeriesN
Minimum Frequency698 MHz
Maximum Frequency960 MHz
Impedance50 Ohm
Maximum Insertion Loss0.35 dB
Maximum Input Power1,000 Watts
Minimum Isolation18 dB


High Power Circulator With 18 dB Isolation From 698 MHz to 960 MHz, 1000 Watts And N Female

RF circulator PE8419 from Pasternack is part of our extensive in-stock RF, microwave and millimeter wave components available for purchase. This RF circulator is manufactured with type N connectors that are female. Our type N circulator has a minimum frequency of 698 MHz and a maximum frequency of 960 MHz.

This type N coaxial circulator has a minimum isolation of 18 dB and a maximum input power of 1000 Watts. PE8419 coaxial type N circulator is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. Our radio frequency circulator can be bought and shipped worldwide the same-day as with our other in-stock RF parts.
