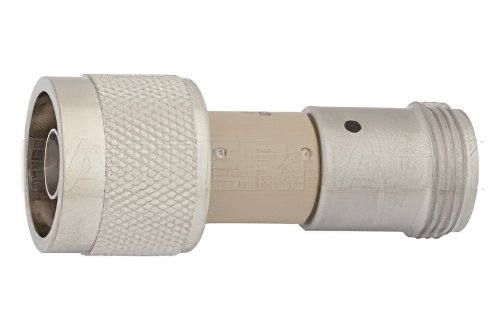

DC Block on Inner and Outer Conductor N Male to N Female Operating From 10 MHz to 18 GHz
Product ID:
PE8215
Pricing
| Quantity | Price |
| 1-9 | $329.99 |
| 10-24 | $313.49 |
| 25-49 | $296.99 |
| 50+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 38
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Block Type | Inner/Outer |
| Impedance | 50 Ohm |
| Connector In Series | N |
| Connector In Gender | Male |
| Connector Out Series | N |
| Connector Out Gender | Female |
| Minimum Frequency | 10 MHz |
| Maximum Frequency | 18 GHz |
| Maximum VSWR | 1.35:1 |
Description
DC Block on Inner and Outer Conductor 50 Ohm N Male to N Female Operating From 10 MHz to 18 GHz
PE8215 is a coaxial RF DC block is from Pasternack and has an 50 Ohm impedance. Our 50 Ohm DC block is manufactured with a N input and N output. This N DC block is an inner/outer direct current block type.
Pasternack inner/outer N DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. PE8215 N inner/outer DC block has a maximum insertion loss of 0.6 dB and a maximum VSWR of 1.35:1.
This inner/outer N RF direct current block is just one of over 40,000 components for RF, microwave and millimeter wave applications supplied by Pasternack. Our coaxial DC block with N connectors is available to buy and be shipped globally the same day as with Pasternack's other RF parts in stock.
