DC Block on Outer Conductor N Male to N Female Operating from 10 MHz to 18 GHz

Product ID: PE8214
DC Block on Outer Conductor N Male to N Female Operating from 10 MHz to 18 GHz

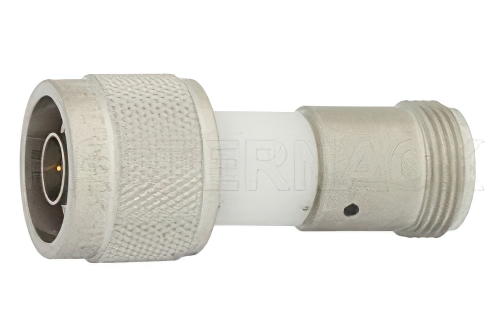

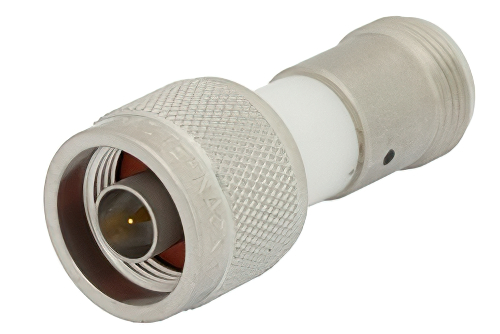

Image Views:  DC Block on Outer Conductor N Male to N Female Operating from 10 MHz to 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE8214 Datasheet
Click for:PE8214 RoHS Cert
Click for:PE8214 REACH Cert
Available Quantity: 54
Pricing Table
QUANTITYPRICE
1-24$232.86
25-49$216.56
50-99$200.26
100-249$186.29
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Block TypeOuter
Impedance50 Ohm
Connector In SeriesN
Connector In GenderMale
Connector Out SeriesN
Connector Out GenderFemale
Minimum Frequency10 MHz
Maximum Frequency18 GHz
Maximum VSWR1.35:1


DC Block on Outer Conductor 50 Ohm N Male to N Female Operating From 10 MHz to 18 GHz

PE8214 is a coaxial RF DC block is from Pasternack and has an 50 Ohm impedance. Our 50 Ohm DC block is manufactured with a N input and N output. This N DC block is an outer direct current block type.

Pasternack outer N DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. PE8214 N outer DC block has a maximum insertion loss of 0.6 dB and a maximum VSWR of 1.35:1.

This outer N RF direct current block is just one of over 40,000 components for RF, microwave and millimeter wave applications supplied by Pasternack. Our coaxial DC block with N connectors is available to buy and be shipped globally the same day as with Pasternack's other RF parts in stock.
