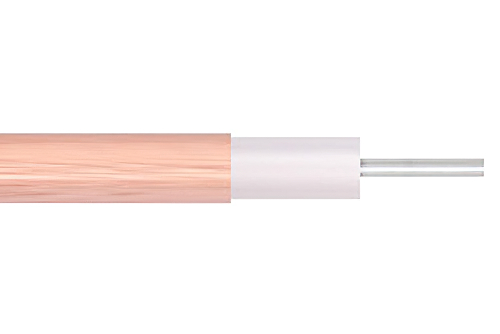

047 Semi-rigid Coax Cable with Copper Outer Conductor
Product ID:
PE-047SR-STRAIGHT
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | 047 Semi-rigid |
| Flex Type | Semi-Rigid |
| Impedance | 50 Ohm |
| Dielectric Type | PTFE |
| Jacket Diameter | 0.047 in |
| No. of Shields | 1 |
| Attenuation at 1 Ghz. | 40 dB |
| Frequency, Max | 40 GHz |
| Max Operating Temperature | 100 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, One Time | 0.05 in |
| Coax Type | Coax |
Description
047 Semi-rigid Coax Cable with Copper Outer Conductor
PE-047SR-STRAIGHT part number from Pasternack is a 047 Semi-rigid coax cable that is semi-rigid. Pasternack PE-047SR semi-rigid coax cable is 50 Ohm and has a PTFE dielectric. Our PE-047SR coax is constructed with a 0.047 jacket. PE-047SR coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 40 GHz. PE-047SR coax cable has an attenuation at 1 GHz of 40 dB.
Pasternack 047 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-047SR cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-047SR or other coax can be built and shipped same day as well.
