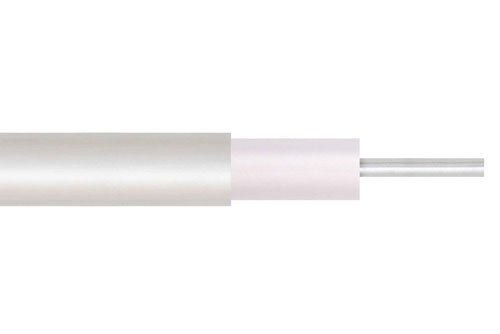

086 Semi-rigid Coax Cable (by foot) with Tinned Aluminum Outer Conductor

Name: 086 Semi-rigid Coax Cable (by foot) with Tinned Aluminum Outer Conductor
Brand: Pasternack
SKU: PE-SR405AL-STR-BULK
Availability: InStock

Product ID: PE-SR405AL-STR-BULK

Pricing

Quantity (Feet)	Price
1-24	$17.39
25-49	$16.52
50-99	$15.65
100-249	$14.96
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 6

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	086 Semi-rigid
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	PTFE
No. of Shields	1
Attenuation at 1 Ghz.	23 dB
Frequency, Max	40 GHz
Max Operating Temperature	125 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	0.05 in
Coax Type	Coax

Description

086 Semi-rigid Coax Cable (by foot) with Tinned Aluminum Outer Conductor

PE-SR405AL-STR-BULK part number from Pasternack is a 086 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR405AL semi-rigid coax cable is 50 Ohm and has a PTFE dielectric. PE-SR405AL coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 40 GHz. PE-SR405AL coax cable has an attenuation at 1 GHz of 23 dB.

Pasternack 086 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR405AL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR405AL or other coax can be built and shipped same day as well.
