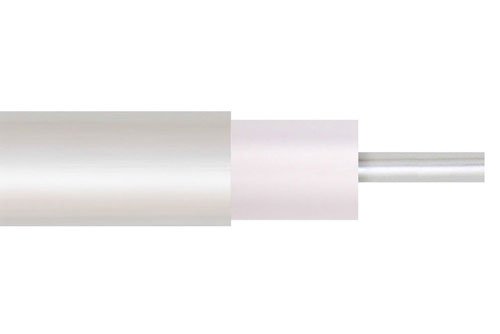

141 Semi-rigid Coax Cable (by foot) with Tinned Aluminum Outer Conductor

Name: 141 Semi-rigid Coax Cable (by foot) with Tinned Aluminum Outer Conductor
Brand: Pasternack
SKU: PE-SR402AL-STR-BULK
Availability: InStock

Product ID: PE-SR402AL-STR-BULK

Pricing

Quantity (Feet)	Price
1-24	$19.99
25-49	$19.19
50-99	$18.59
100-249	$18.19
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 18

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	141 Semi-rigid
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	69.5 %
Jacket Diameter	0.141 in
No. of Shields	1
Attenuation at 1 Ghz.	13 dB
Frequency, Max	36 GHz
Max Operating Temperature	125 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	0.1 in
Coax Type	Coax

Description

141 Semi-rigid Coax Cable (by foot) with Tinned Aluminum Outer Conductor

PE-SR402AL-STR-BULK part number from Pasternack is a 141 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR402AL semi-rigid coax cable is 50 Ohm and has a PTFE dielectric. Our PE-SR402AL coax is constructed with a 0.141 jacket. PE-SR402AL coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 36 GHz. PE-SR402AL coax cable has an attenuation at 1 GHz of 13 dB.

Pasternack 141 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR402AL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR402AL or other coax can be built and shipped same day as well.
